14.4V/28.8V auto switch, ALEXA35/ALEXA 265/Blackmagic URSA Cine battery, airplane boarding, D-tap 16V out
98Wh Bi-voltage B-mount Battery Pack
Official Features

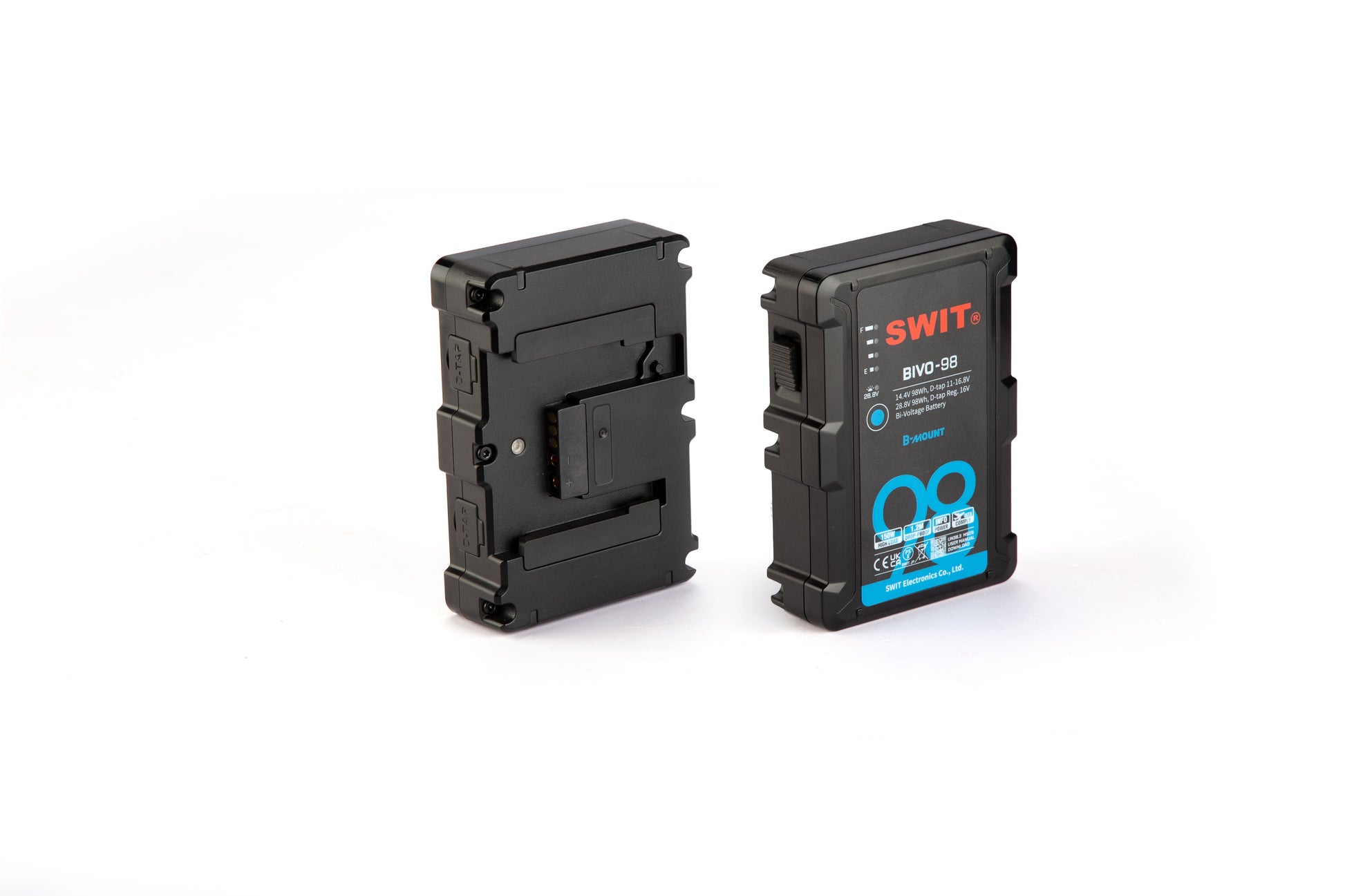

14.4V/28.8V Bi-Voltage B-mount Battery
BIVO-98 is a 14.4V(11-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI/BMD cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.
98Wh Fly Friendly Capacity
BIVO-98 battery is only 38mm thickness and 668g light weight for handheld shooting. It's 98Wh capacity, run at least 1 hour on ARRI ALEXA 35 camera, and not being restricted to board airplane. The battery provides at least 150W constant power load for cine cameras and devices.

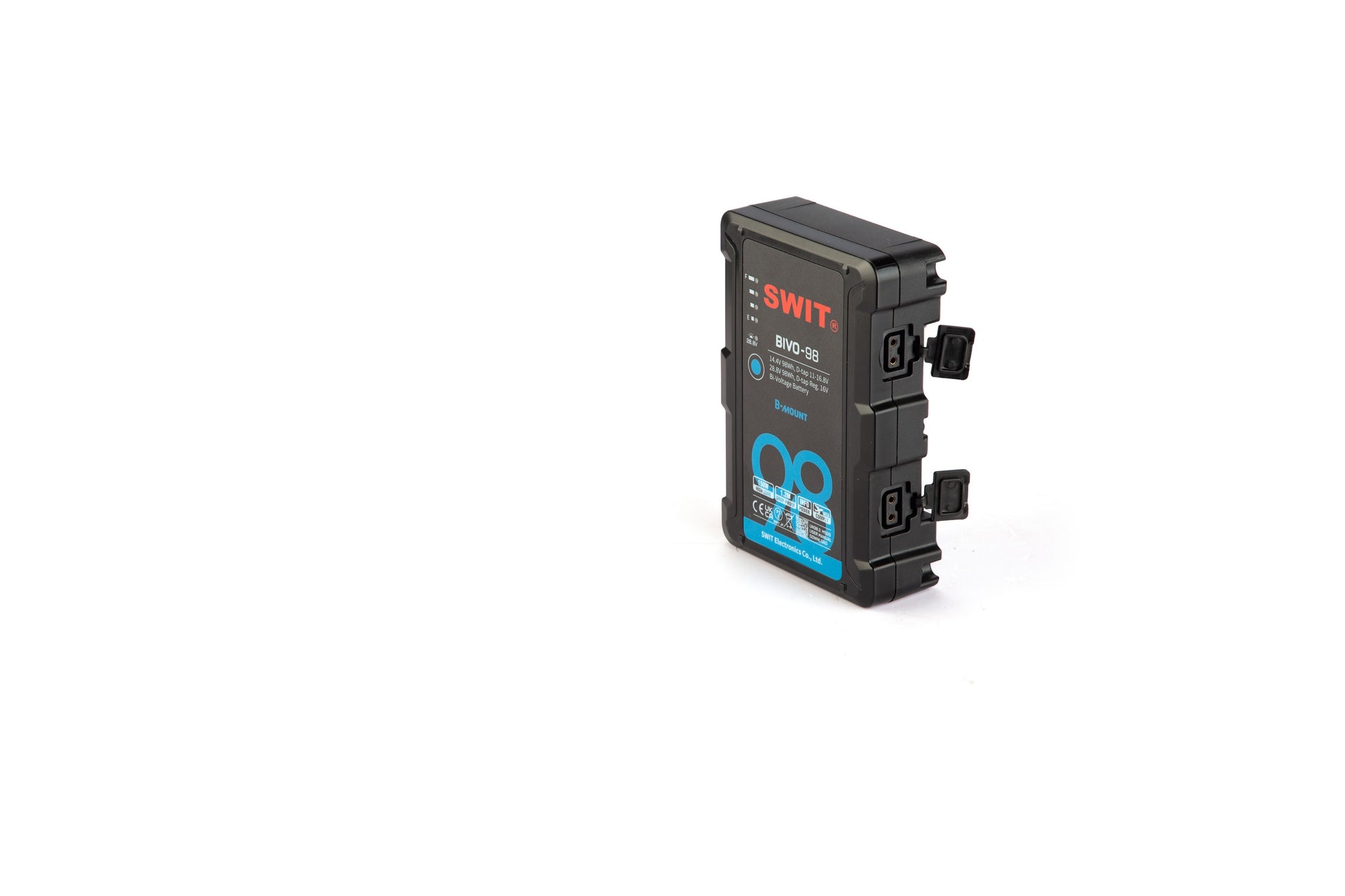

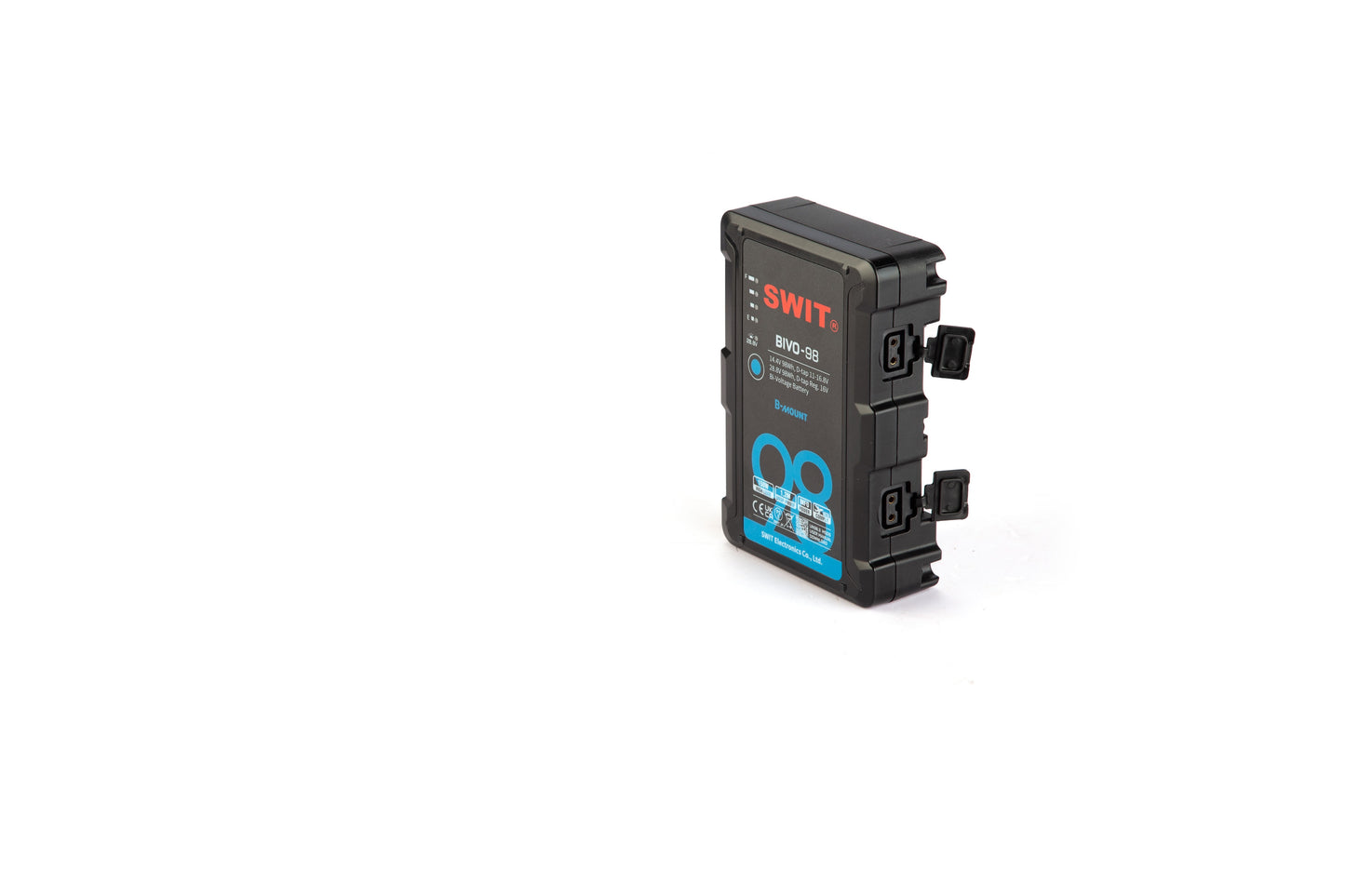

2x D-tap Power Output
BIVO-98 provides with 2x D-tap power sockets. When the battery works at 14.4V voltage, the D-tap outputs 11-16.8V; When the battery works at 28.8V voltage, the D-tap output regulated 16V, to power all kinds of camera-top devices.
BIVO Series Family
The BIVO series Bi-voltage B-mount battery famaily has 98Wh, 160Wh, 196Wh, 290Wh, the different sizes and capacities, for stablizer handheld light weight or long time power selection.

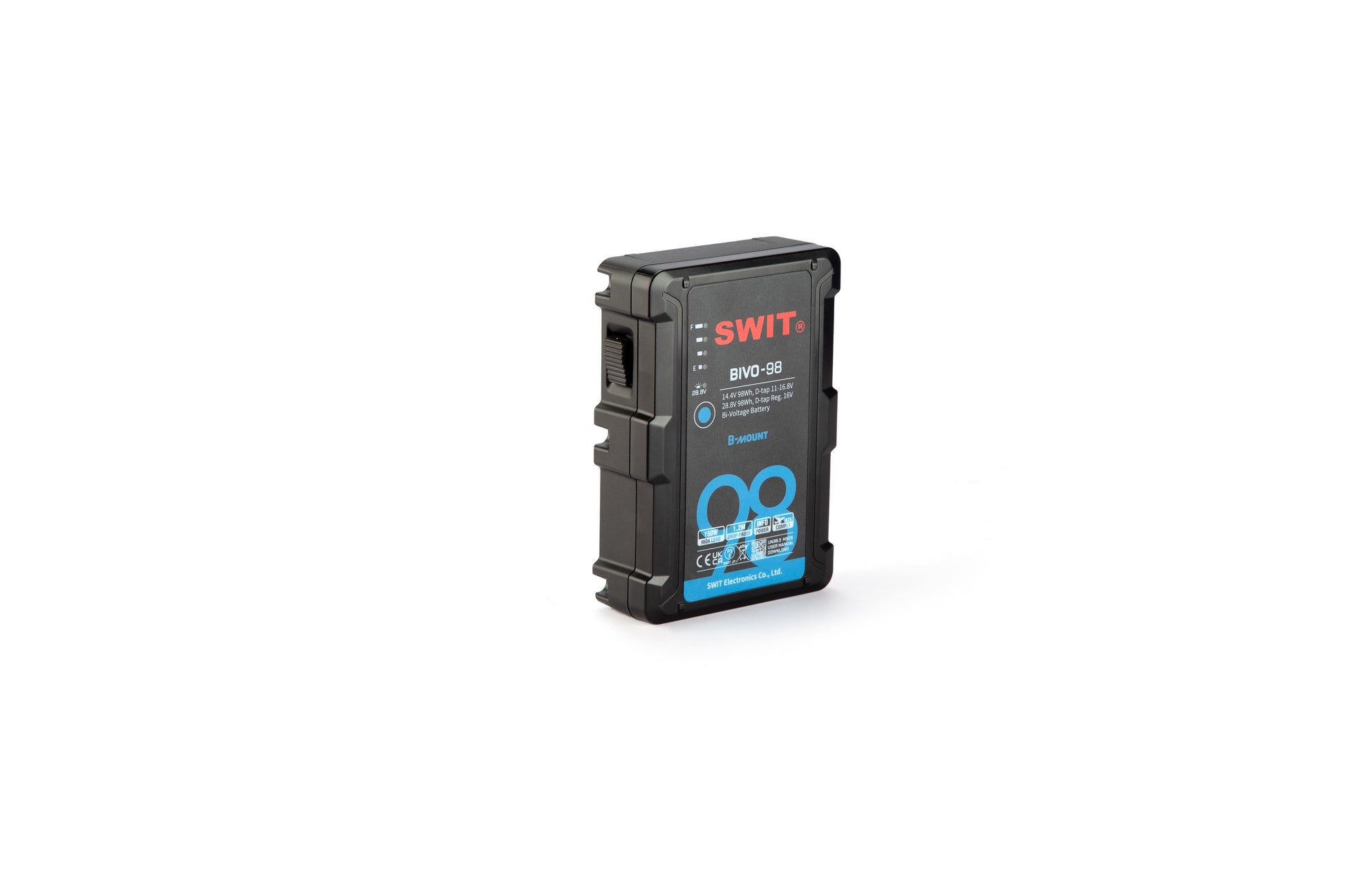

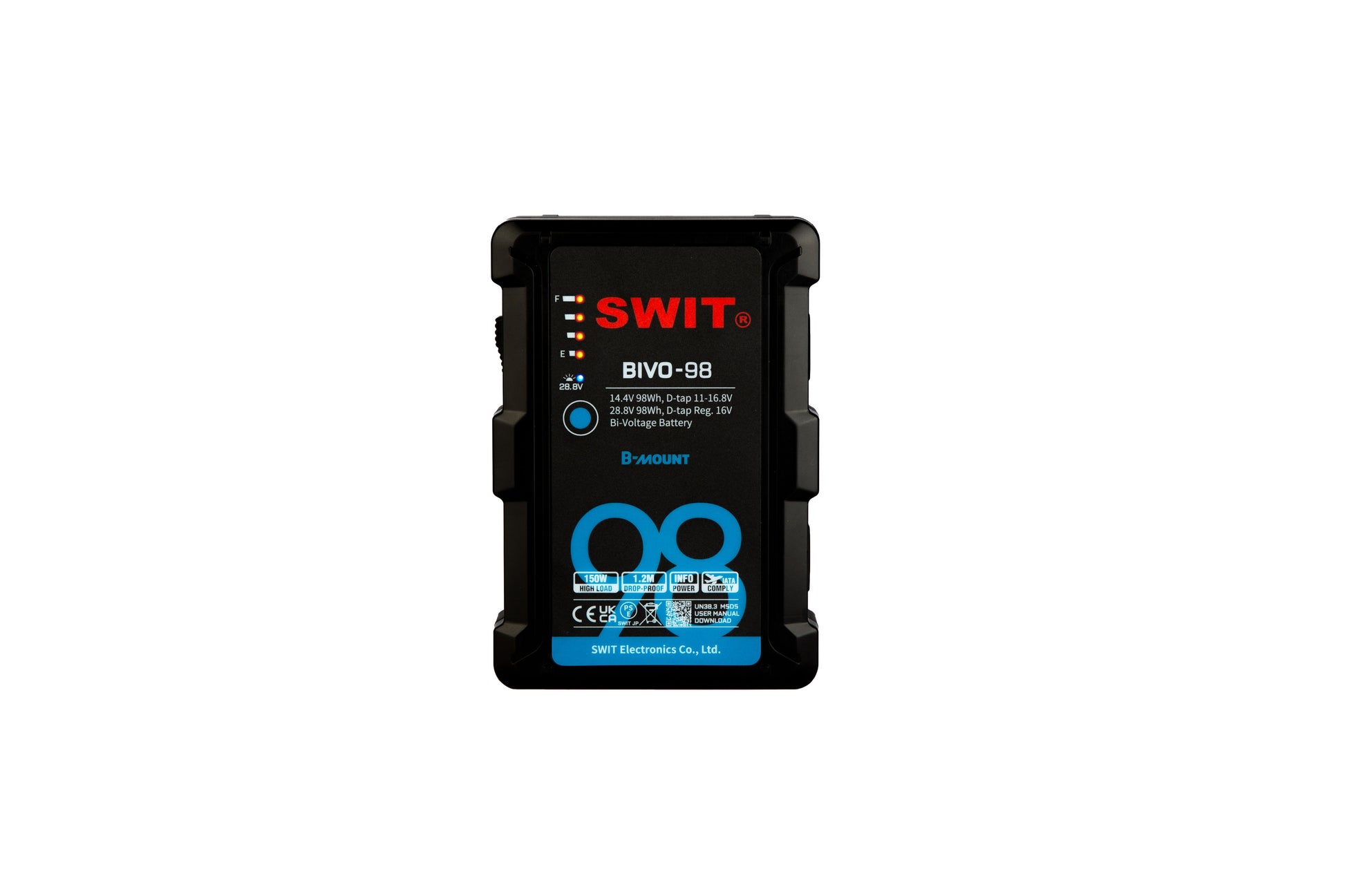

LED Power/Voltage Indicators
BIVO-98 has 4-level LED power indicators and an independent blue LED to indicate battery voltage. When the battery attached to B-mount plate, the blue LED turned on means the battery outputs 28.8V high voltage, and the blue LED off means the battery is 14.4V regular voltage.
33.6V Fast Charging

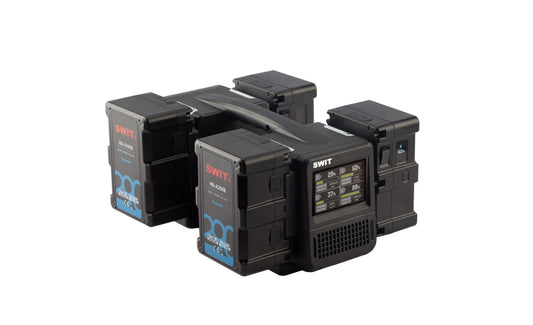

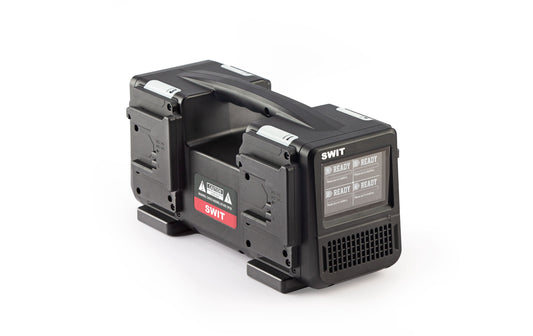

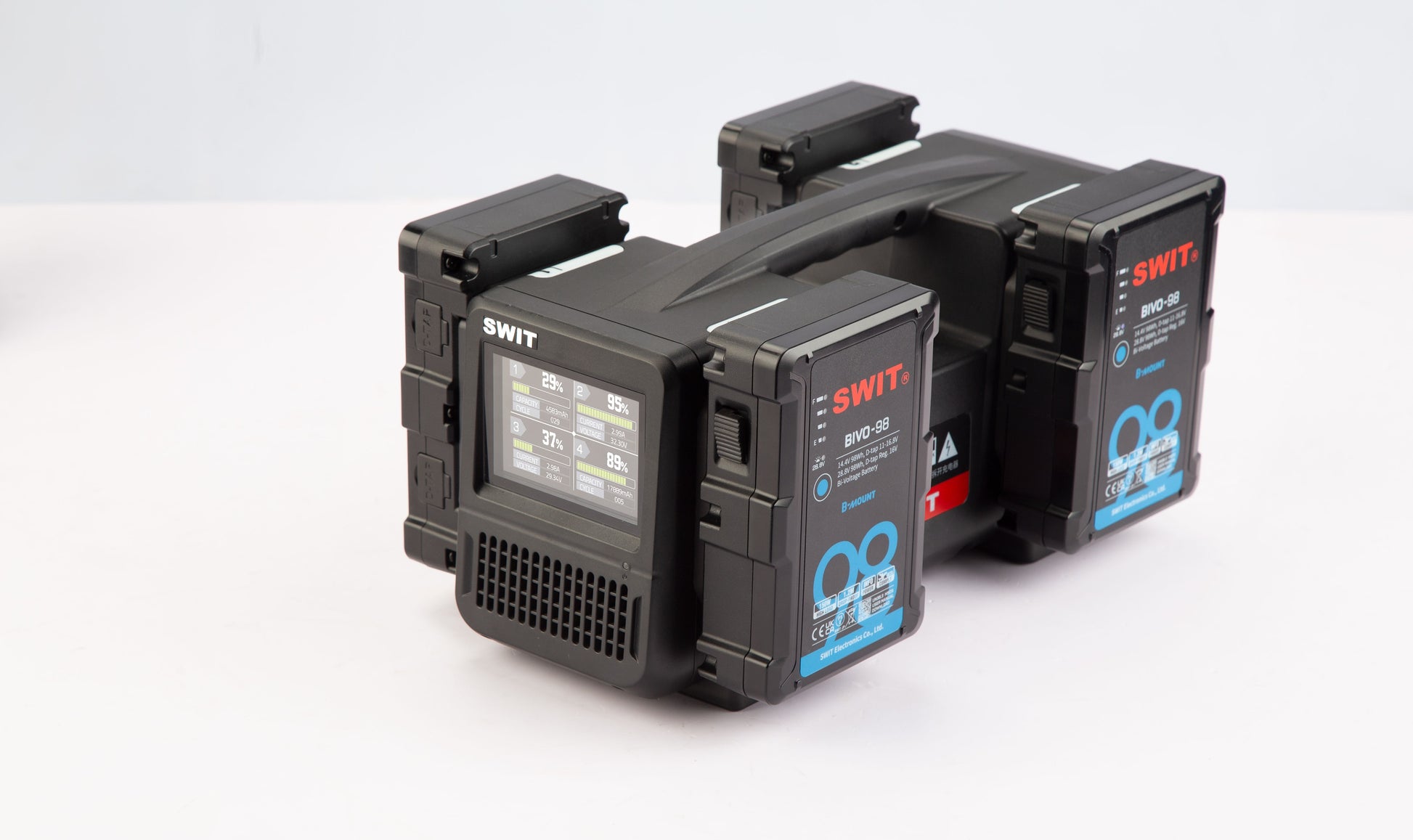

You can charge 4x BIVO-98 simultaneously on SWIT PC-P461B B-mount charger, at 33.6V, 44W fast charging. The charger will take approx. 3 hours to fully charge 4x BIVO-98 batteries.
LED Torch
You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find B-mount plate in dark production environment. Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.
1.2 meters Drop-off Proof
BIVO-98 battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.
Official Product Data
-
Model SPU: BIVO-98
-
Division: Power
-
Big Category: Battery
-
Small Category: Power Battery
-
Power: 98Wh
-
Voltage: 28.8V/14.4V
-
Weight (kg): 0.7
-
Spec 2: Smart Bi-Voltage Patent
-
Plate Type: B-Mount
-
Lifecycle: 2023New
