14.4V/28.8V auto switch, ALEXA35/ALEXA 265/Blackmagic URSA Cine battery, 250W high load, D-tap 16V out
290Wh Bi-voltage B-mount Battery Pack
Official Features

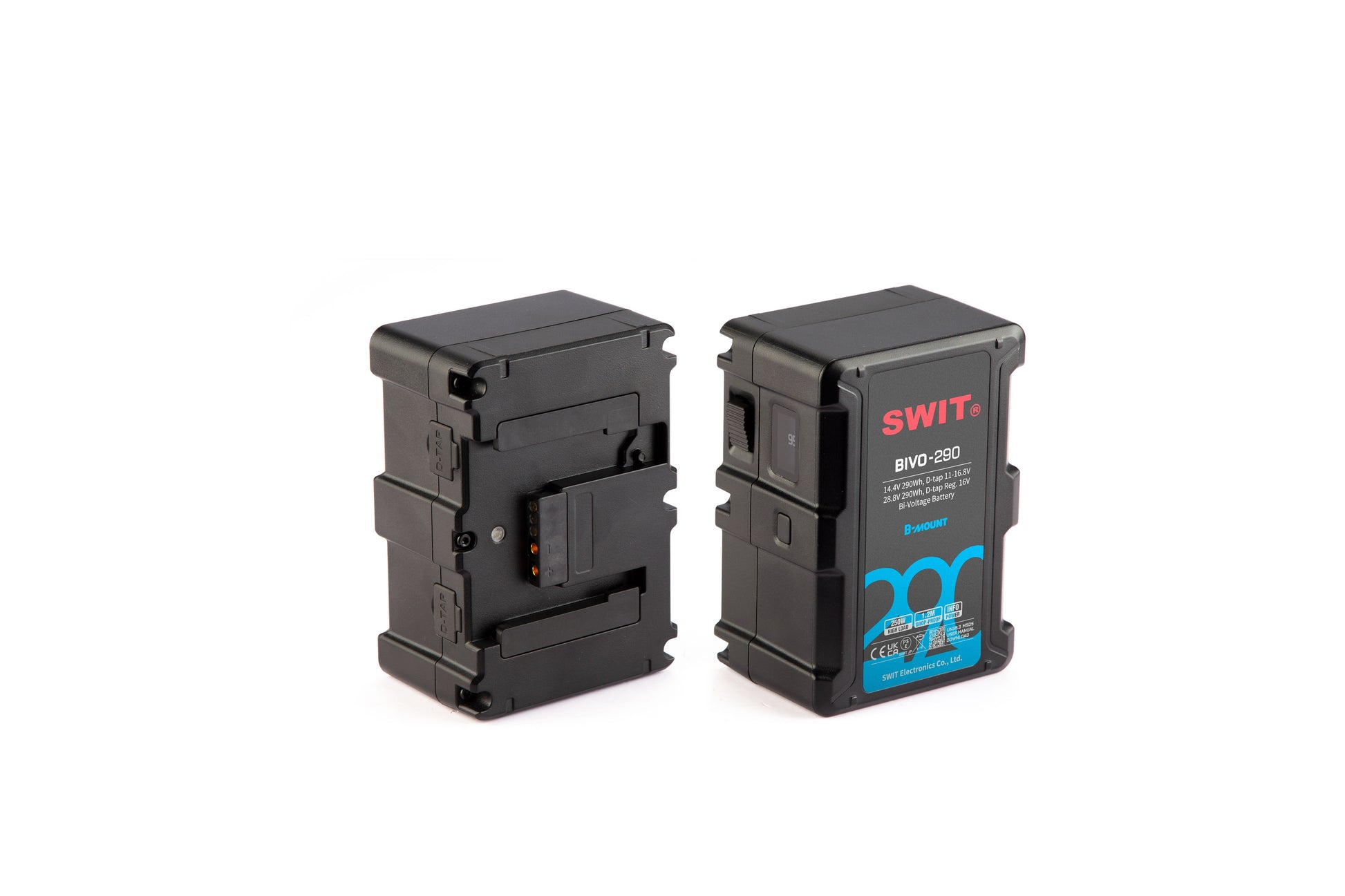

14.4V/28.8V Bi-Voltage B-mount Battery
BIVO-290 is a 14.4V(10.8-16.8V) and 28.8V (21.6-33.6V) Bi-voltage B-mount battery, for ARRI/BMD cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.
290Wh Capacity, 250W Load

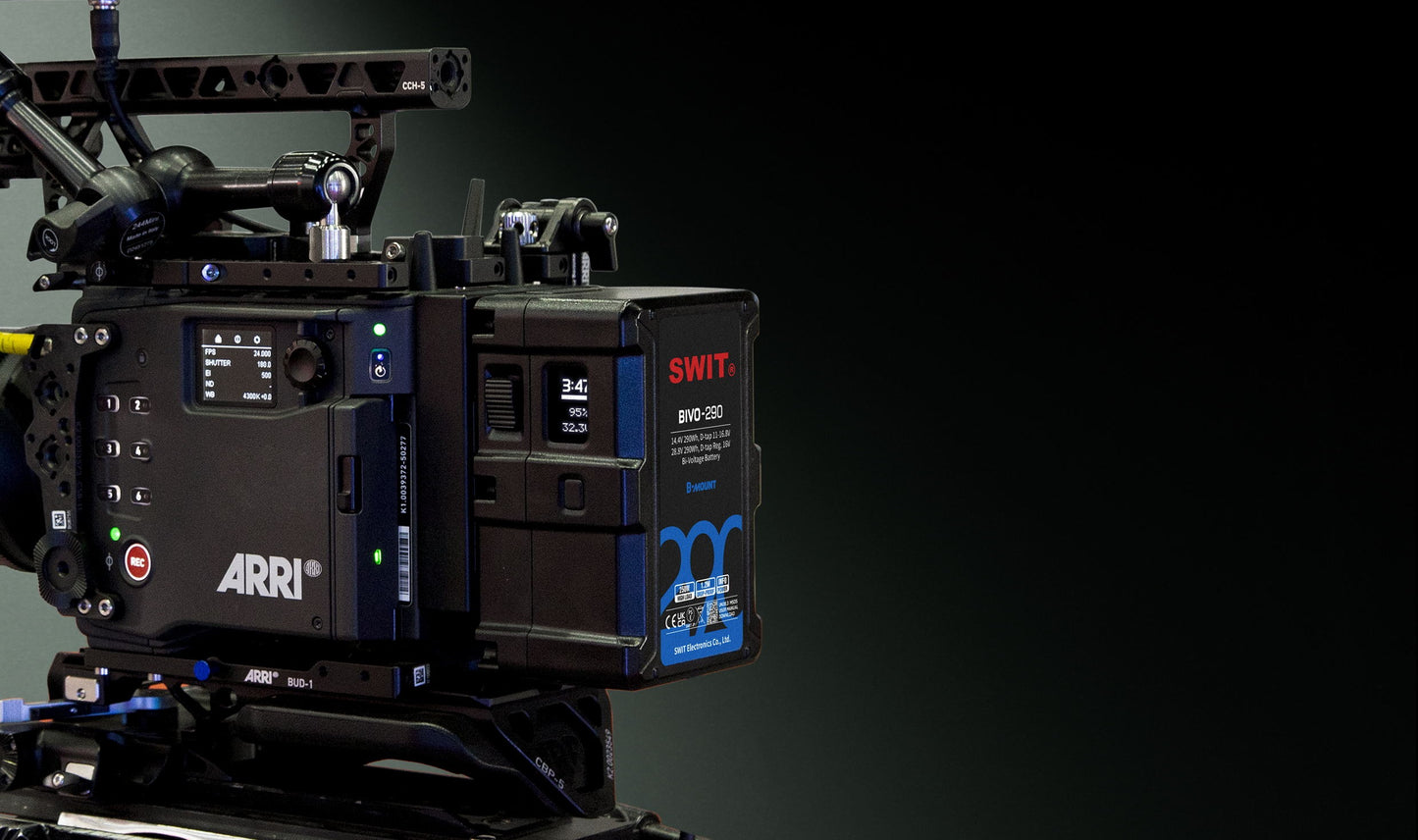

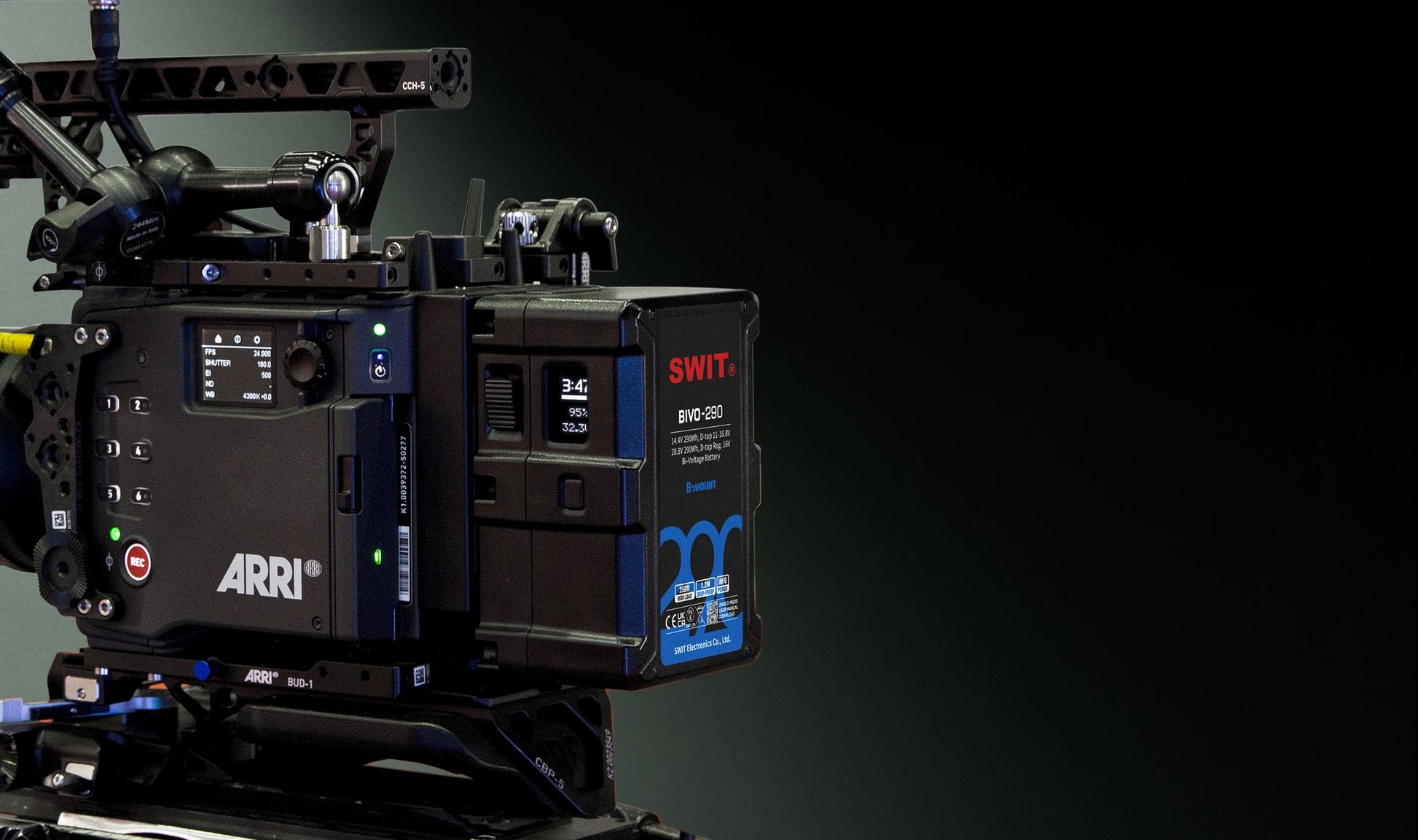

BIVO-290 battery has 290Wh large capacity, run more than 3 hours on ARRI ALEXA 35 camera. The battery provides at least 250W constant high load for cine cameras and devices.

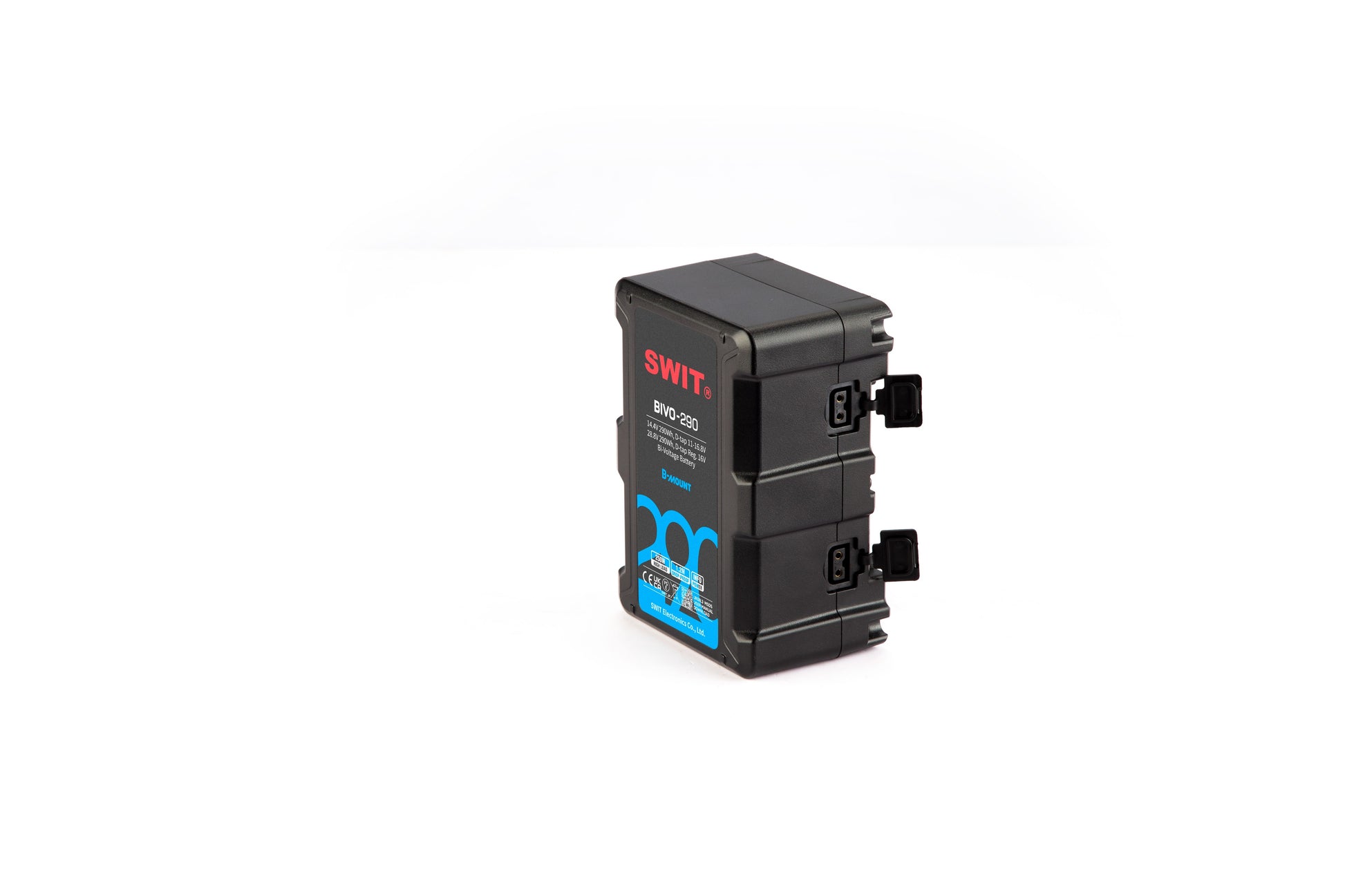

2x D-tap Power Output
BIVO-290 provides with 2x D-tap power sockets. When the battery works at 14.4V voltage, the D-tap outputs 11-16.8V; When the battery works at 28.8V voltage, the D-tap output regulated 16V, to power all kinds of camera-top devices.

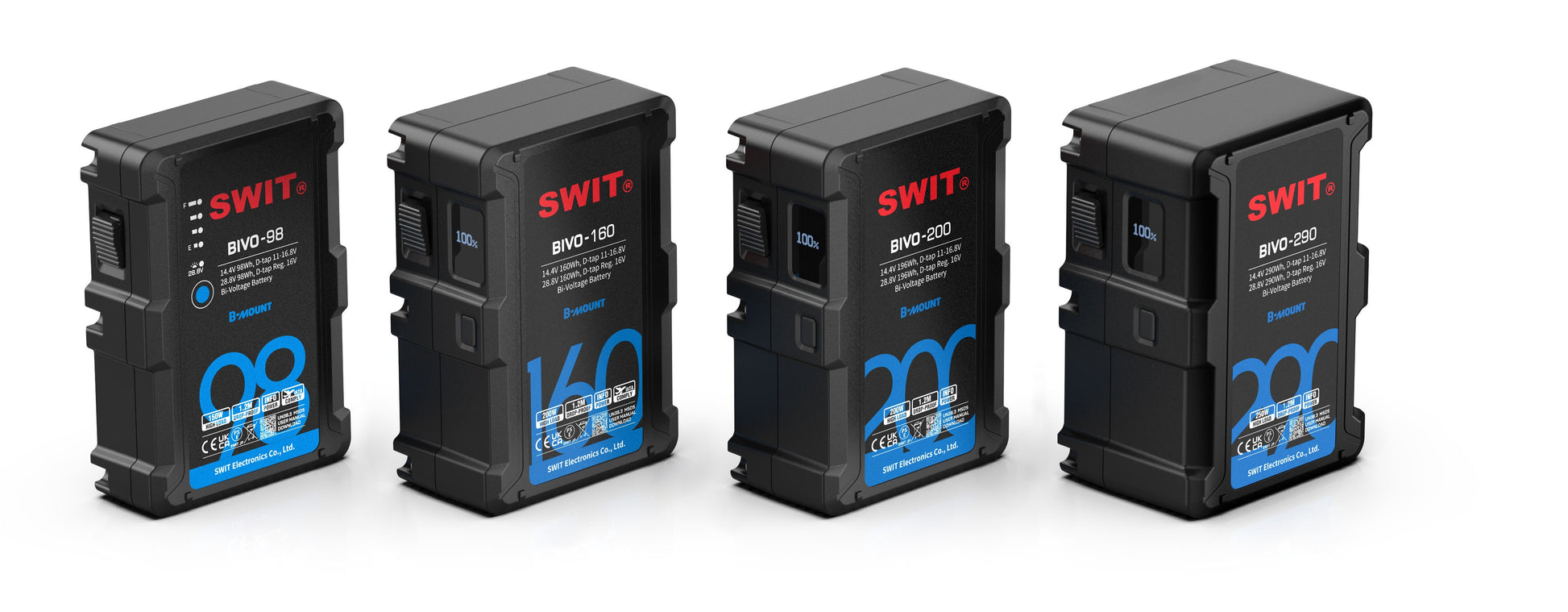

BIVO Series Family
The BIVO series Bi-voltage B-mount battery famaily has 98Wh, 160Wh, 196Wh, 290Wh, the different sizes and capacities, for stablizer handheld light weight or long time power selection.
OLED Power Info Display
BIVO-290 battery provides an OLED screen to display battery status and power information, includes output voltage, power percentage, remaining running time, and protection warning code if any abnormal detected.

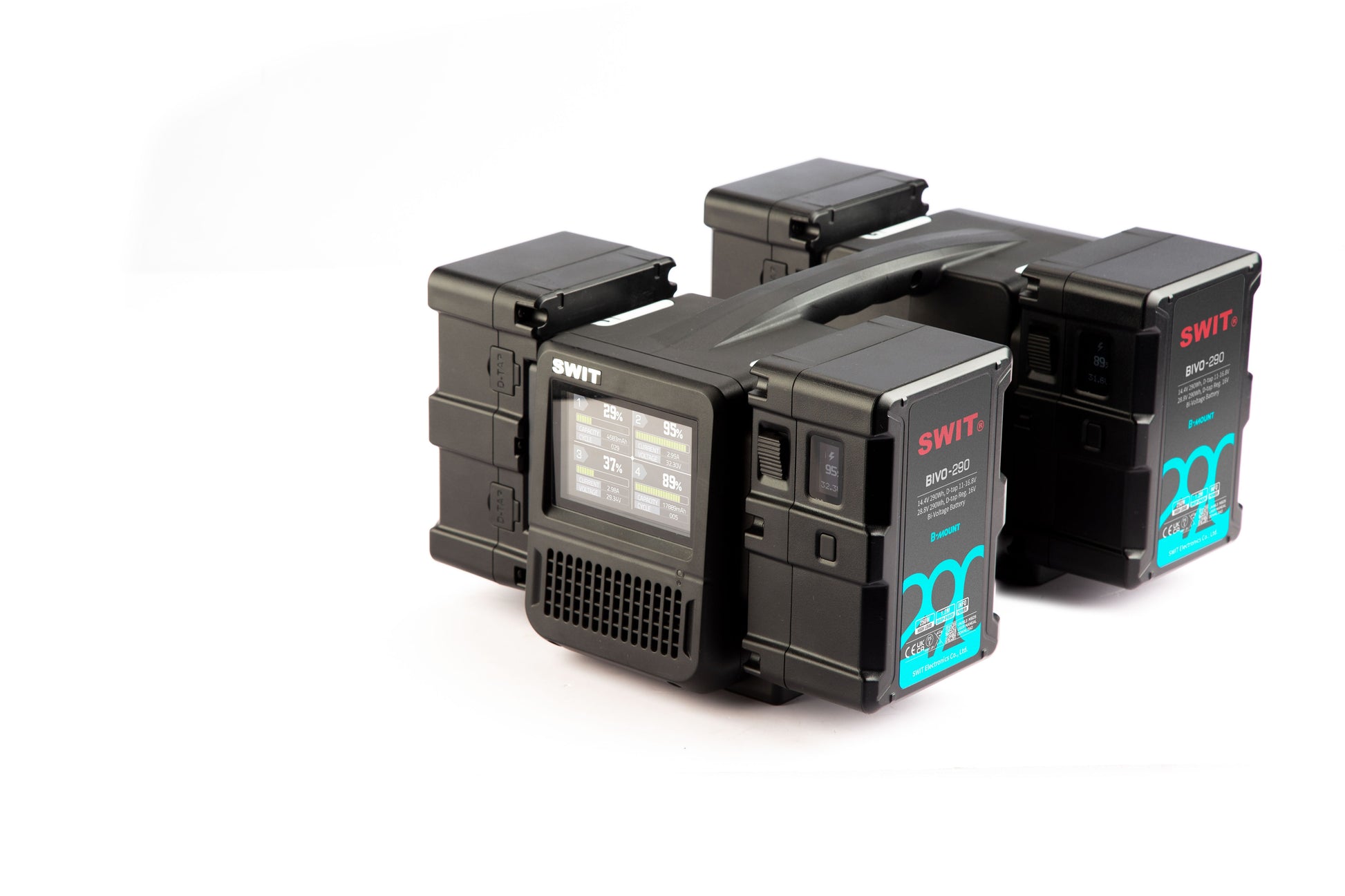

100W Super Fast Charging
You can charge 4x BIVO-290 simultaneously on SWIT PC-P461B B-mount charger, at 33.6V 3A, 100W super fast charging. The charger will take approx. 3 hours 50 minutes to fully charge 4x BIVO-290 batteries.
LED Torch
You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find B-mount plate in dark production environment. Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.
1.2 meters Drop-off Proof
BIVO-290 battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.
Official Product Data
-
Model SPU: BIVO-290
-
Division: Power
-
Big Category: Battery
-
Small Category: Power Battery
-
Power: 290Wh
-
Voltage: 28.8V/14.4V
-
Weight (kg): 1.6
-
Spec 1: 6A Ultra fast
-
Spec 2: Smart Bi-Voltage Patent
-
Plate Type: B-Mount
-
Lifecycle: 2023New
