ATEM Monitoring Rack Panel 40

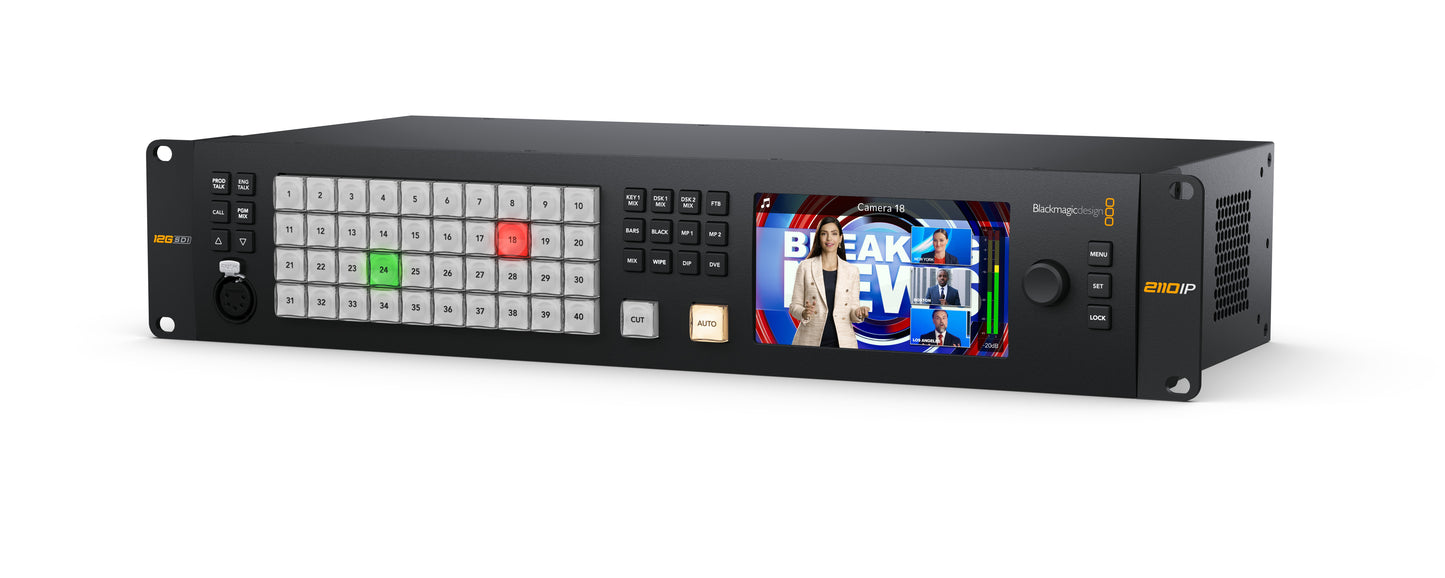

The ATEM Monitoring Rack Panel 40 is a video converter built into a larger 2RU rack-mount ATEM switcher control panel! It features 40 buttons for controlling a local ATEM switcher, plus a front panel talkback connection for communication. The video converter has two redundant SMPTE-2110 10G Ethernet connections, which are converted to 2 x 12G-SDI outputs and an HDMI output. Video is also displayed on the converter's large 5-inch built-in LCD screen, giving you convenient local rack monitoring!

Official Technical Details

Connections

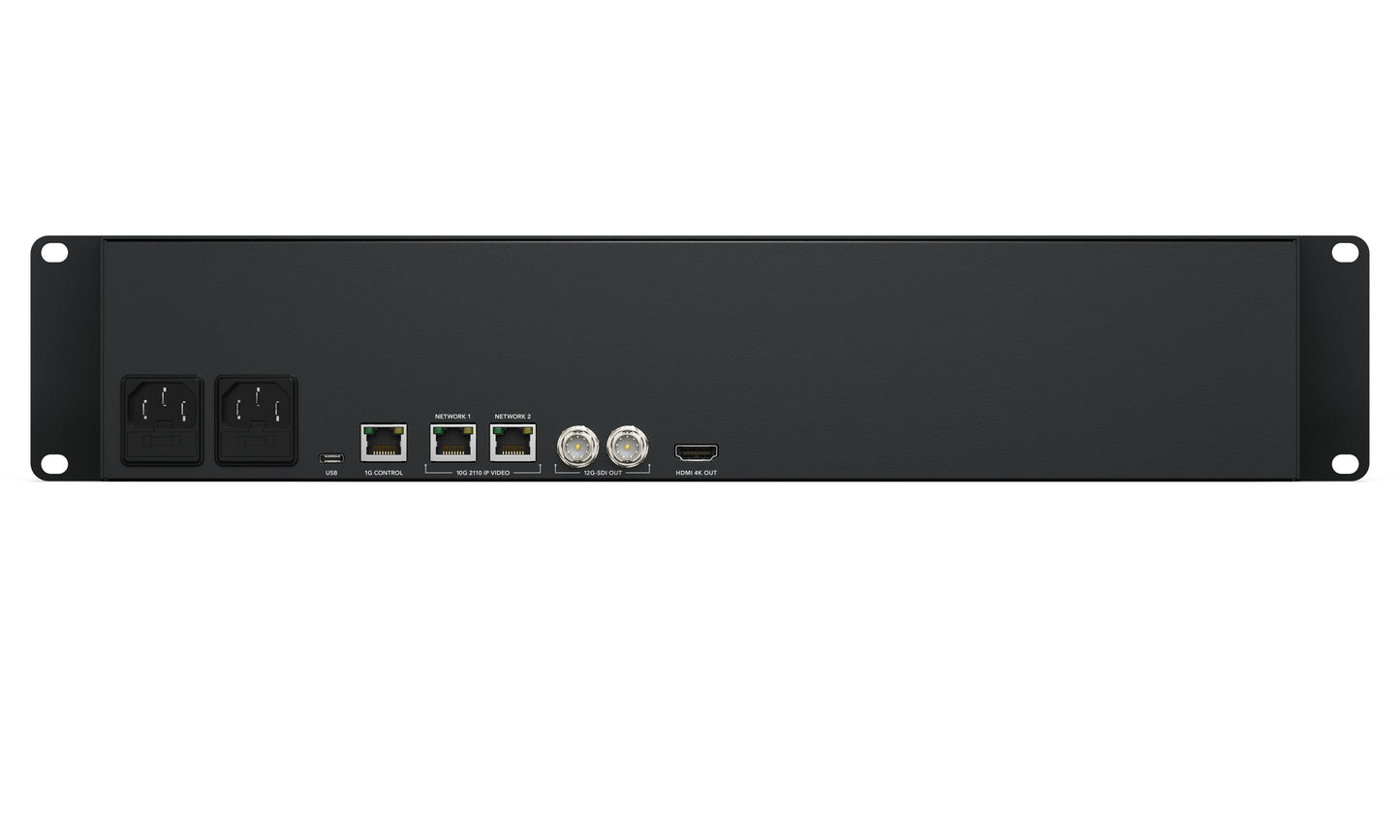

• 10G 2110 IP Networks: 2 x 10G RJ45 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
• 10G Control Network: 1 x 1G RJ45 for connection to switcher and NMOS control.
• Total Video Inputs: 1
• Total Video Outputs: 3
• SDI Video Outputs: 2
• SDI Rates: 1.5G, 3G, 6G, 12G.
• HDMI 2.0 Video Inputs: 1
• SDI Audio Outputs: 16 Ch embedded audio on all SDI outputs.
• HDMI Audio Outputs: 8 Ch embedded audio on HDMI output.
• SDI Program Outputs: 2
• SDI Preview Outputs: 2
• SDI Multi View Outputs: 2
• HDMI Multi View Outputs: 1
• Talkback: 1 x 5-pin XLR Talkback.
• Computer Interface: 1 x USB-C for setup utility and software updates.
• Power: 2 x IEC C14 power inputs.

Standards

• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
• SMPTE Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7
• Video Sampling: 4:2:2
• Color Precision: 10-bit.
• SDI Color Space: Rec. 709, Rec. 2020

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v2
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Product Specifics

• Talkback Support: Yes
• Control: Front panel emergency switching, software or optional hardware panel.

Display

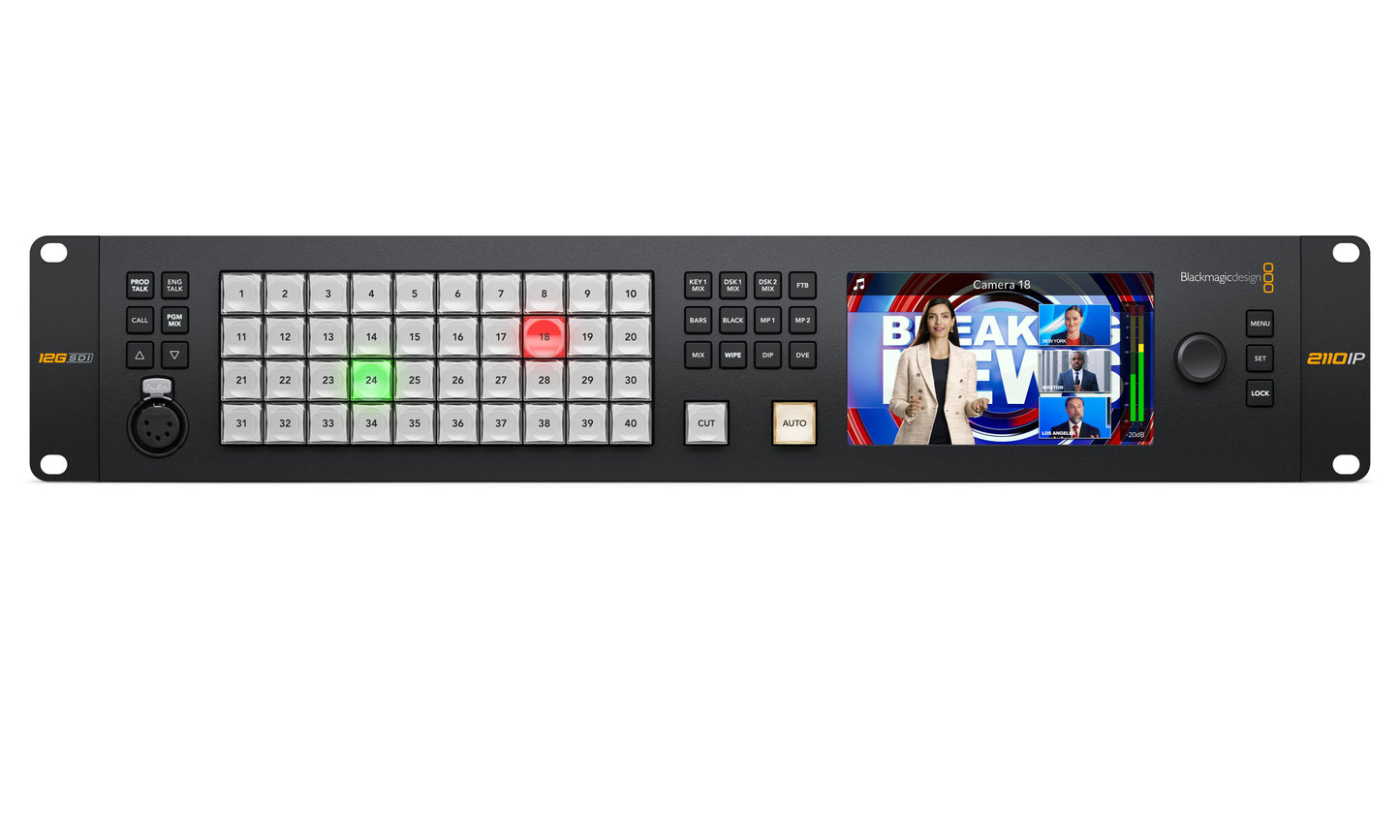

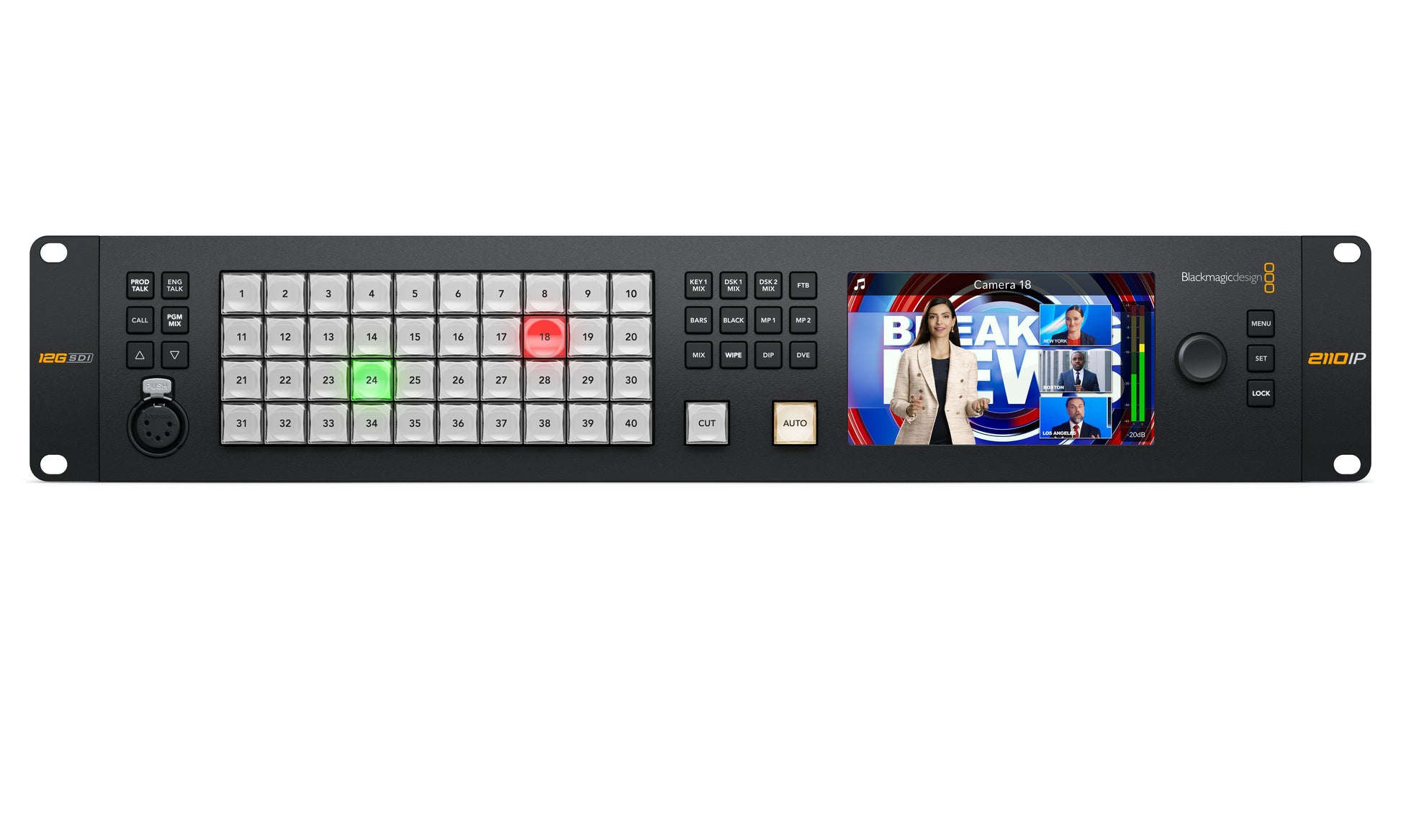

• Front panel: Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.

Software

• Control Panel Included: ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later and Windows 10 and 11.
• Software Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
• Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB‑C to chassis.

Operating Systems

• Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
• Windows 10 and 11. Windows 11 for ARM

Power Requirements

• Power Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
• Power Input: 2 x IEC C14 sockets.
• Power Usage: TBC

Physical Installation

• Physical Installation: 2 rack units.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• ATEM Monitoring Rack Panel 40
• Welcome wallet with QR code for software download

Warranty

• 1 Year Limited Manufacturer’s Warranty.
