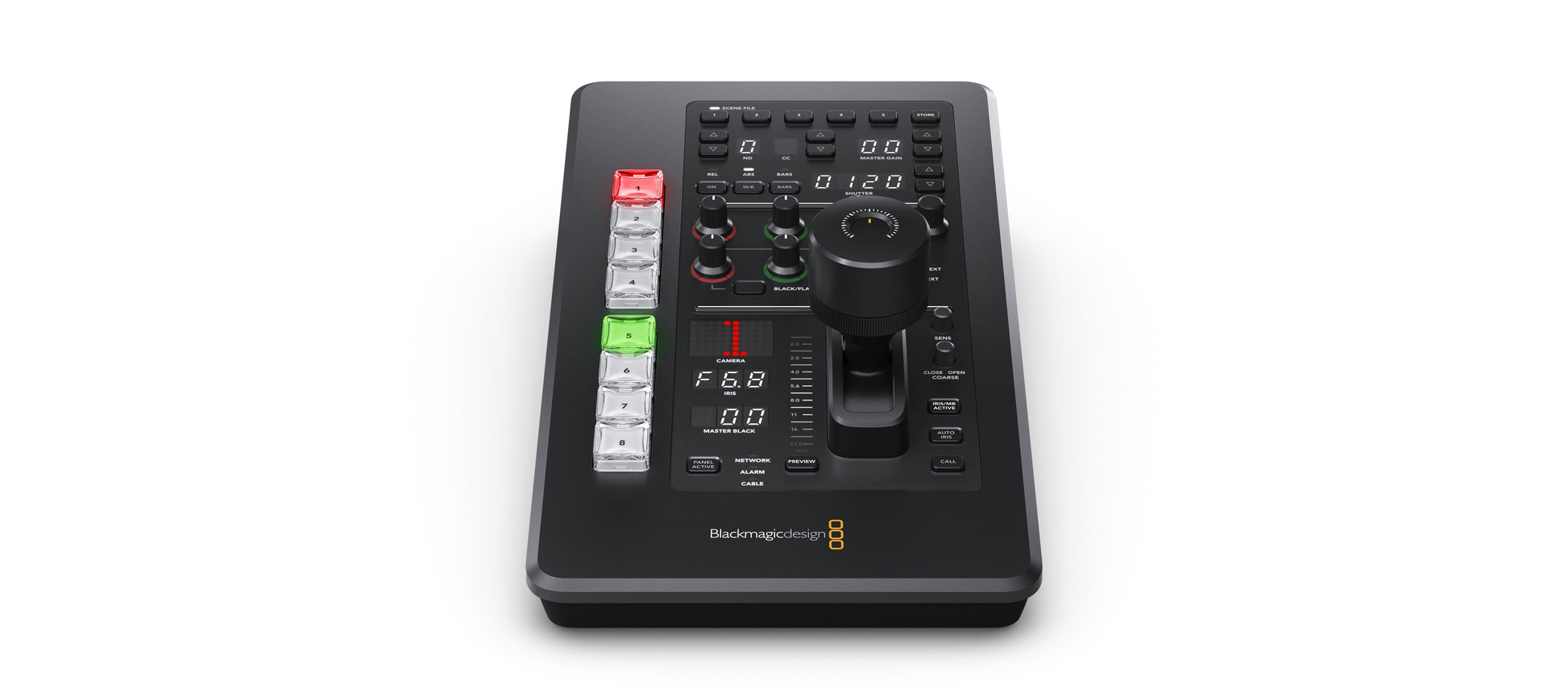

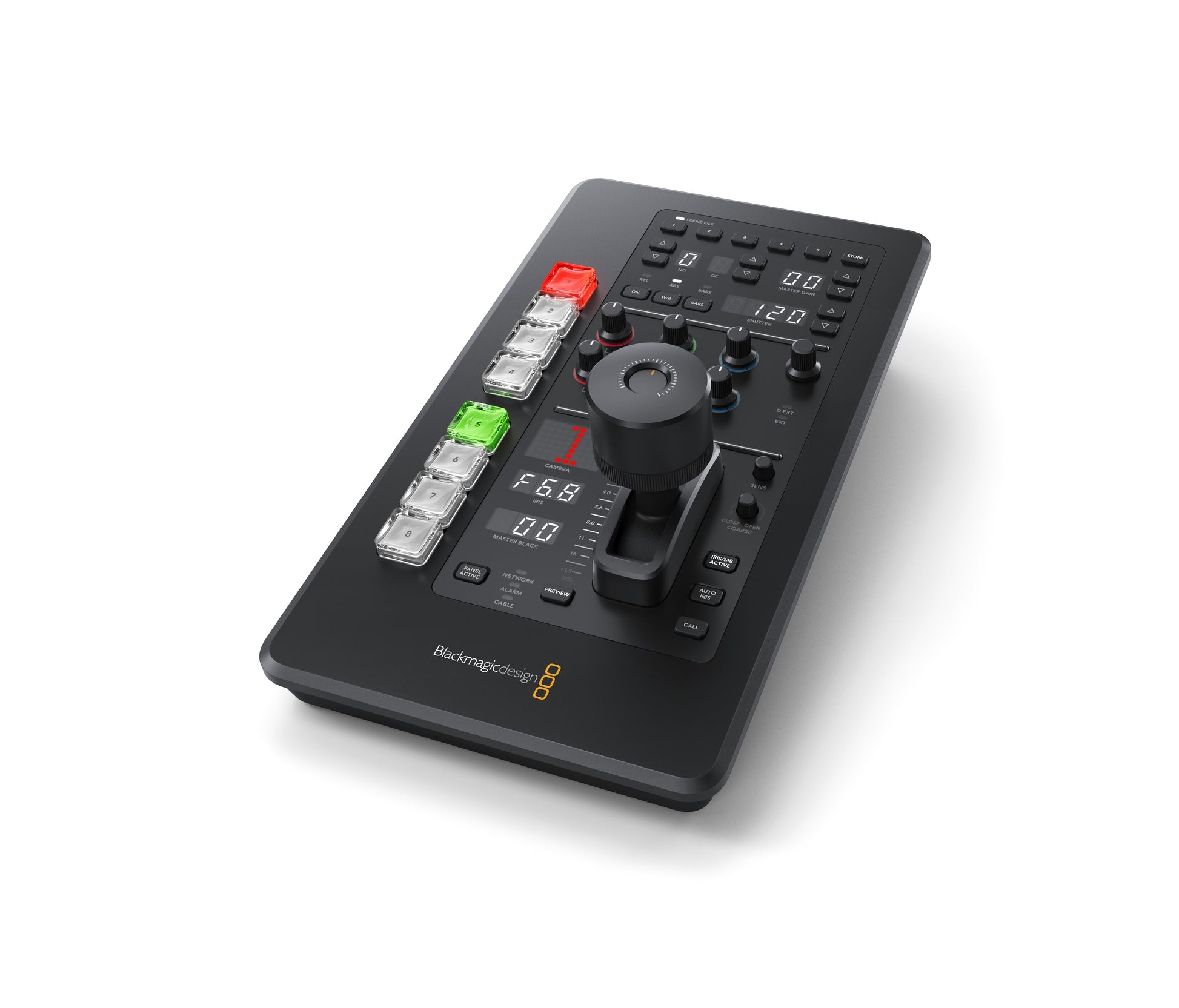

ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Official Technical Details
Connections
Computer Interface: USB Type‑C.
Bluetooth: Bluetooth 5.1 LE
Software Updates: 1 x USB‑C for firmware updates.
Product Specifics
Camera Selection buttons: 8 x NKK buttons. Assignable via setup utility.
Camera Number Display: Green off air, red on air.
Setup: White and black balance setup. Flare via modifier key.
3 Axis Joystick: 1
Preview Button: 1
Iris Control: Auto Iris On, Coarse control.
Iris Range: CLS f32 to f1.2
Gain Range: -12dB to +32dB
ND Filters: 0, 2, 4, 6.
Shutter Range: 1/24 to 1/2000
White Balance Range: 2500K to 10,000K
Recallable Scenes: 5 per camera.
Panel Active: Protects settings.
Software
Software Applications: ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating Systems
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
Windows 10 and 11. Windows 11 for ARM
Power Requirements

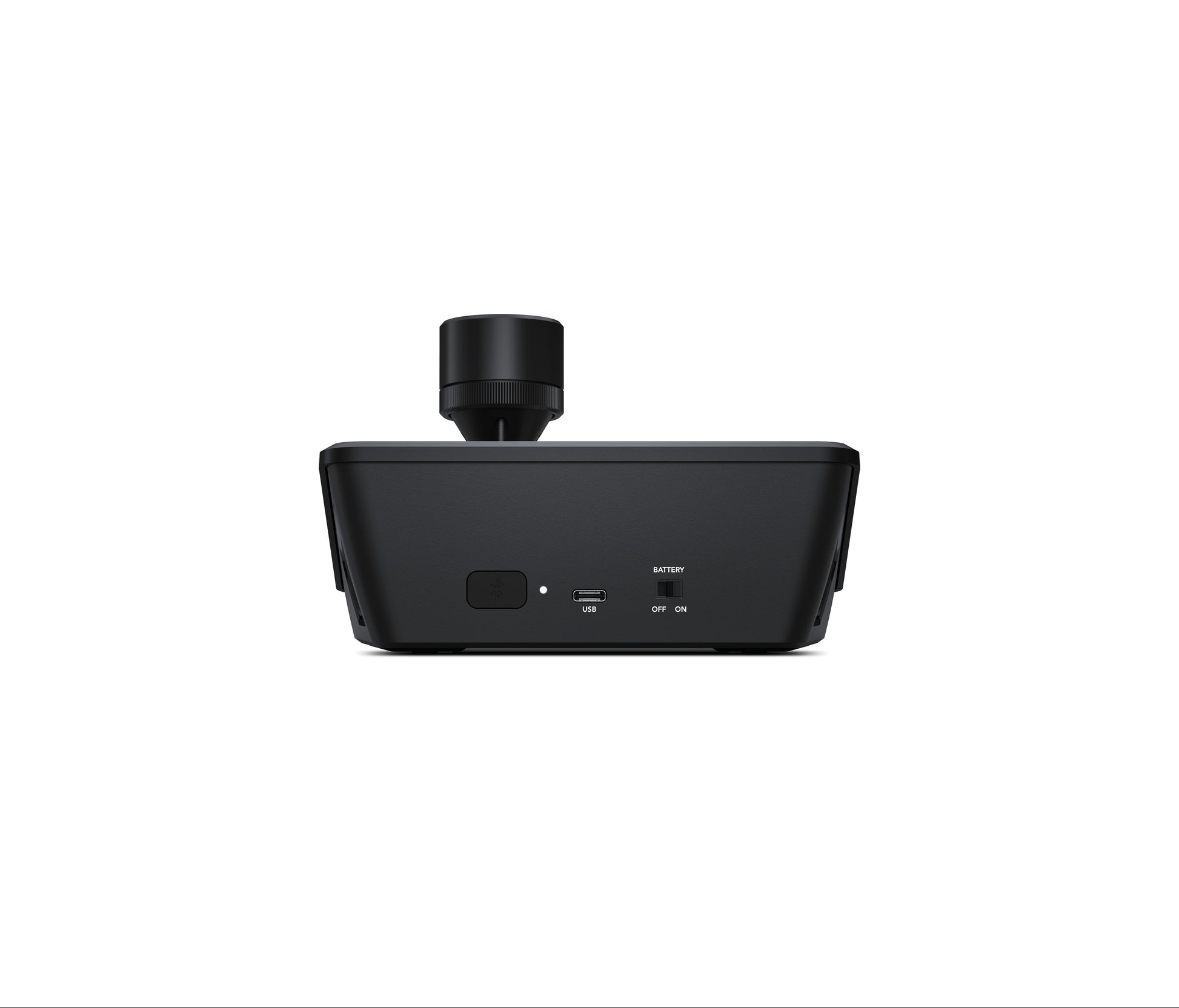

Power Supply: Internal battery with power switch. USB-C port for external power supply and battery charging.
Power Usage: 4 W max.
Battery Life: Minimum 3 hours. (under normal use)
Environmental Specifications
Operating Temperature: 5° to 40° C (41° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non‑condensing
What's Included
ATEM Micro Camera Panel Welcome wallet with QR code for software download 1 x USB‑C cable
