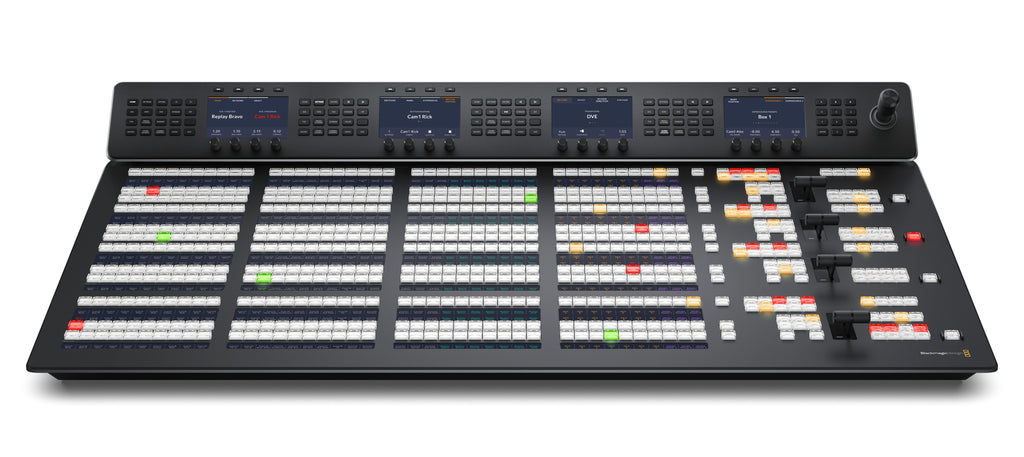

Blackmagic Design ATEM 4 M/E Advanced Panel 40

This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row. This massive panel includes 24 LCD's for custom labeling of every button on every row!

Official Technical Details

Connections

• Ethernet: 4 x 10/100/1000 BaseT with loop output for additional control panels or computers.
• Software Updates: 1 x USB-C for firmware updates.

Product Specifics

• Number of Mix Effects Rows: 4
• Direct Cross Points: 40
• Shifted Cross Points: 80
• Crosspoint Button Type: Tri-Color LED
• Crosspoint Label: 10 rows 24 character LCD
• On-Air indicator: 20
• Power Status Indicators: None
• DSK Transition Selectors: 4 x Auto, Cut, Tie/Preview
• Preview Transition: 4
• Transition Rate Displays: Via main menu
• LCD Menu Displays: 4
• Menu Control: 4 x 20 buttons
• Dedicated Macro Buttons: 4 x 40
• Transport Control Buttons: 24
• Destination Bus: 4
• Source Select Bus: 4
• Fader Bar: 4
• 3 Axis Joystick: 1
• Numeric Keypad: 1

Software

• Software Applications: ATEM Software Control Panel.

Operating Systems

• Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
• Windows 10 and 11.

Power Requirements

• Input Voltage: 2 x Internal 100 - 240V AC.
• Redundant Power: Yes
• Power Usage: 250W

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: Up to 95%

What's Included

• ATEM 4 M/E Advanced Panel 40

Warranty

• 1 Year Limited Manufacturer’s Warranty.
