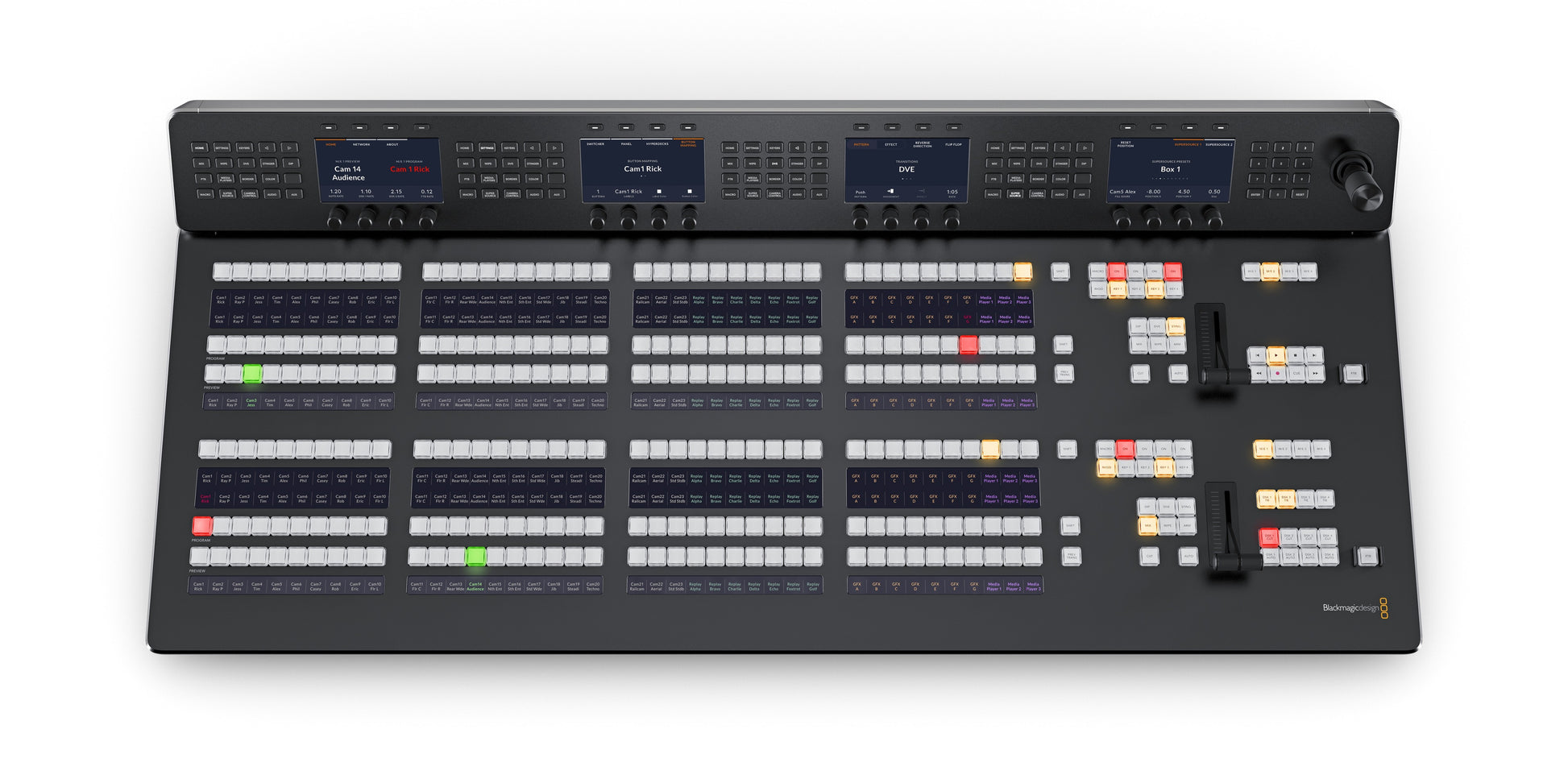

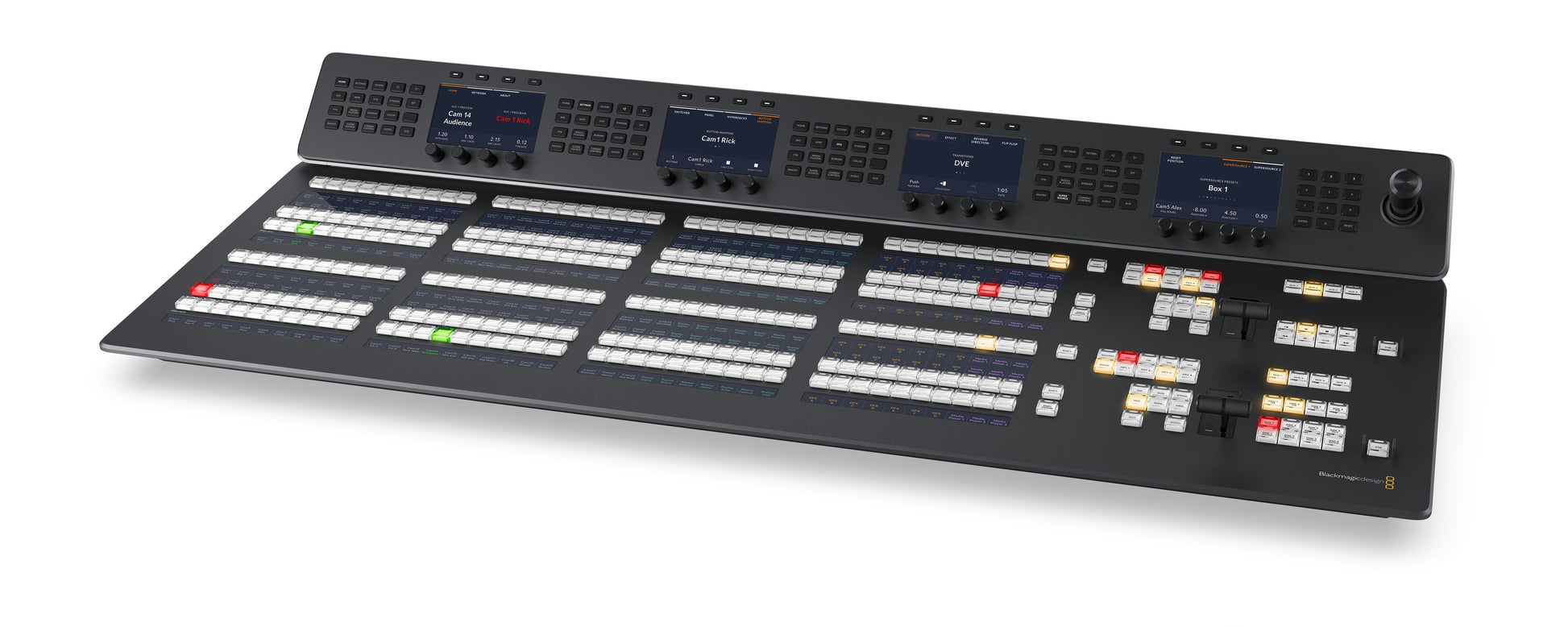

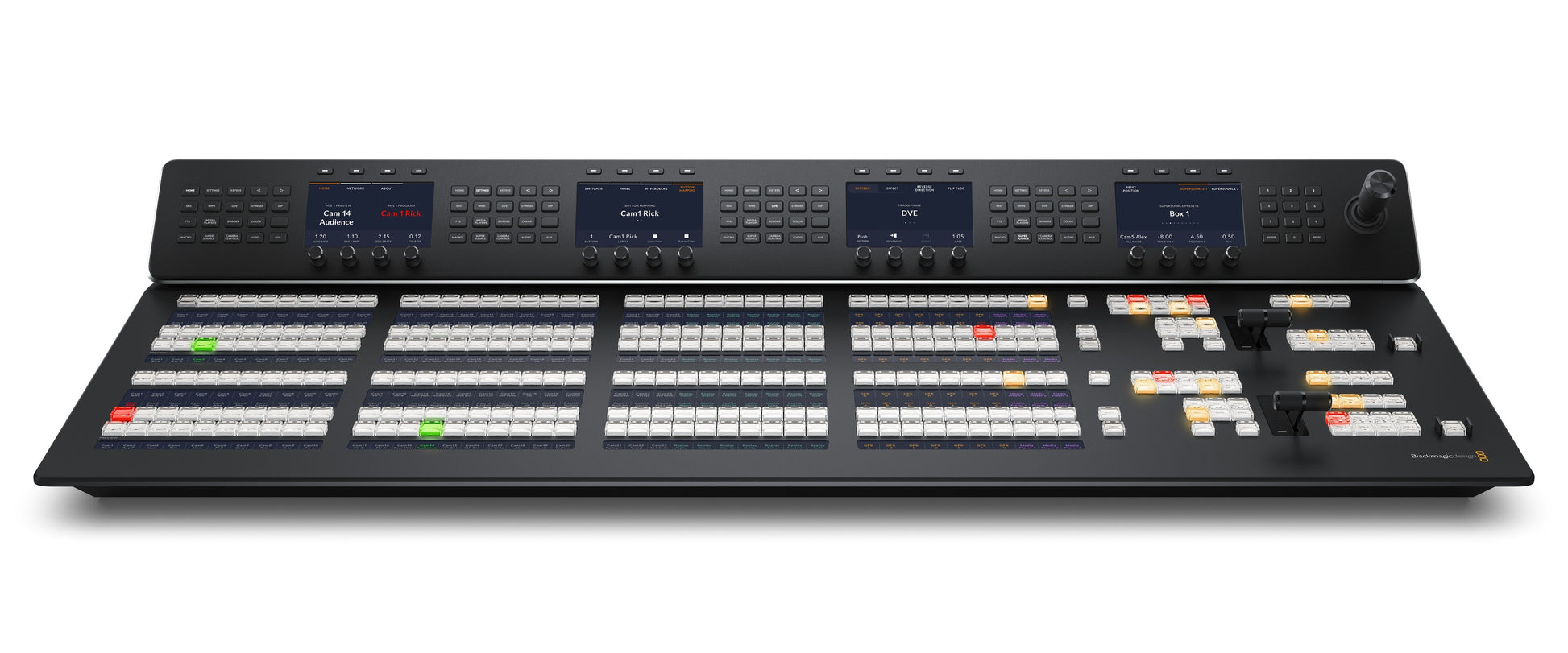

The 2 M/E model features 2 M/E rows with 40 input buttons and 4 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!
Official Technical Details
Connections
Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Software Updates: 1 x USB-C for firmware updates.
Product Specifics
Number of Mix Effects Rows: 2
Direct Cross Points: 40
Shifted Cross Points: 80
Crosspoint Button Type: Tri-Color LED
Crosspoint Label: 6 rows 24 character LCD
On-Air indicator: 12
Power Status Indicators: None
DSK Transition Selectors: 4 x Auto, Cut, Tie/Preview
Preview Transition: 2
Transition Rate Displays: Via main menu
LCD Menu Displays: 4
Menu Control: 4 x 20 buttons
Dedicated Macro Buttons: 2 x 40
Transport Control Buttons: 8
Destination Bus: 2
Source Select Bus: 2
Fader Bar: 2
3 Axis Joystick: 1
Numeric Keypad: 1
Software
Software Applications: ATEM Software Control Panel.
Operating Systems
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
Windows 10 and 11.
Power Requirements
Input Voltage: 2 x Internal 100 - 240V AC.
Redundant Power: Yes
Environmental Specifications
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
