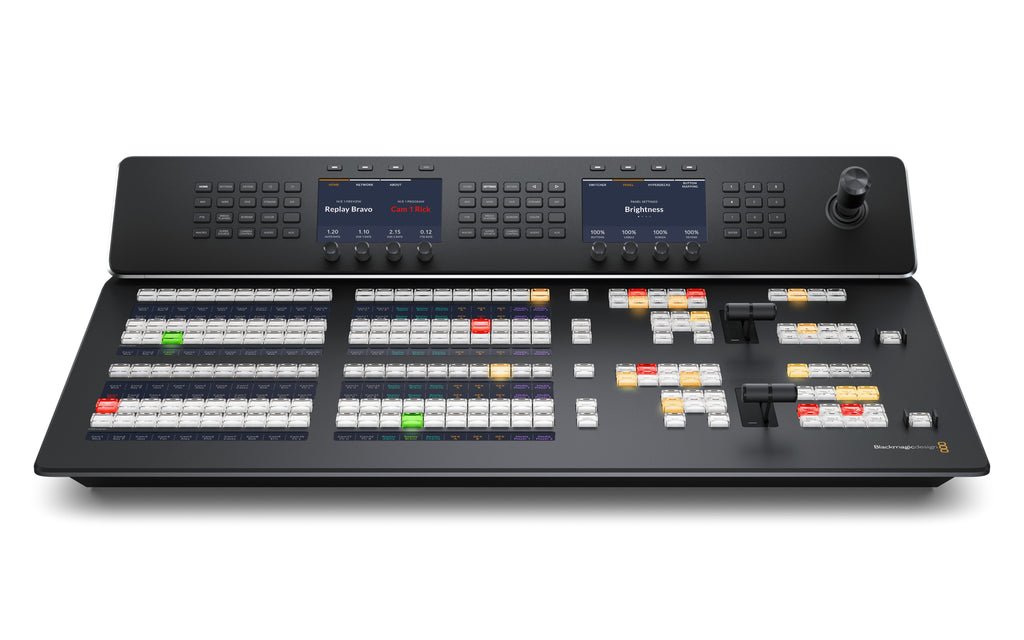

Blackmagic Design ATEM 2 M/E Advanced Panel 20

The 2 M/E model features 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!

Official Technical Details

Connections

• Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
• Software Updates: 1 x USB-C for firmware updates.

Product Specifics

• Number of Mix Effects Rows: 2
• Direct Cross Points: 20
• Shifted Cross Points: 40
• Crosspoint Button Type: Tri-Color LED
• Crosspoint Label: 6 rows 24 character LCD
• On-Air indicator: 8
• Power Status Indicators: None
• DSK Transition Selectors: 4 x Auto, Cut, Tie/Preview
• Preview Transition: 2
• Transition Rate Displays: Via main menu
• LCD Menu Displays: 2
• Menu Control: 2 x 20 buttons
• Dedicated Macro Buttons: 2 x 20
• Transport Control Buttons: 8
• Destination Bus: 2
• Source Select Bus: 2
• Fader Bar: 2
• 3 Axis Joystick: 1
• Numeric Keypad: 1

Software

• Software Applications: ATEM Software Control Panel.

Operating Systems

• Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
• Windows 10 and 11.

Power Requirements

• Input Voltage: 2 x Internal 100 - 240V AC.
• Redundant Power: Yes
• Power Usage: 100W

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: Up to 95%

What's Included

• ATEM 2 M/E Advanced Panel 20

Warranty

• 1 Year Limited Manufacturer’s Warranty.

Official Documentation

• Official Tech Specs PDF
• Download Manual
• Official Product Page
