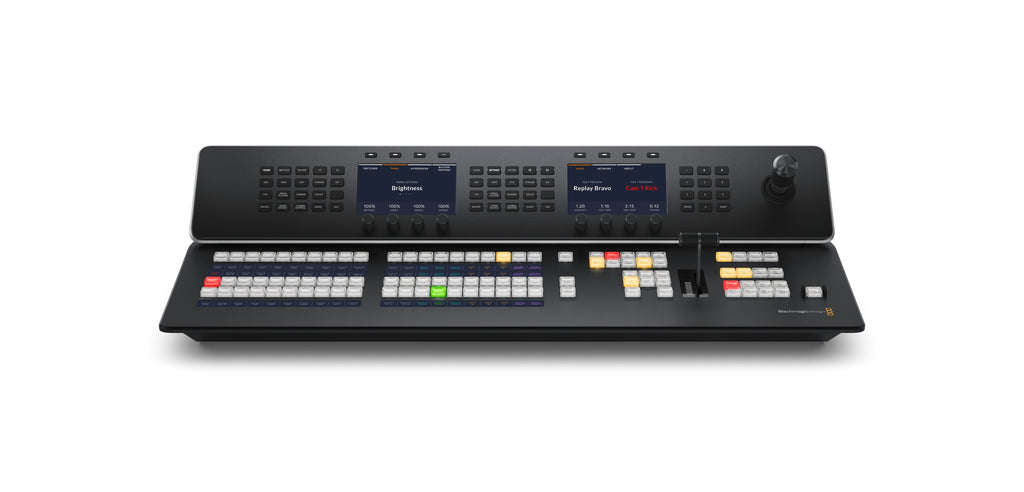

Blackmagic Design ATEM 1 M/E Advanced Panel 20

The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!

Official Technical Details

Connections

• Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
• Software Updates: 1 x USB-C for firmware updates.

Product Specifics

• Number of Mix Effects Rows: 1
• Direct Cross Points: 20
• Shifted Cross Points: 40
• Crosspoint Button Type: Tri-Color LED
• Preview Transition: 1
• Transition Rate Displays: Via main menu
• LCD Menu Displays: 2
• Menu Control: 2 x 20 buttons
• Dedicated Macro Buttons: 1 x 20
• Transport Control Buttons: 8
• Destination Bus: 1
• Source Select Bus: 1
• Fader Bar: 1
• 3 Axis Joystick: 1
• Numeric Keypad: 1

Software

• Software Applications: ATEM Software Control Panel.

Operating Systems

• Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
• Windows 10 and 11.

Power Requirements

• Input Voltage: 2 x Internal 100 - 240V AC.
• Redundant Power: Yes
• Power Usage: 75W

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 95% non-condensing

What's Included

• ATEM 1 M/E Advanced Panel 20
• Welcome wallet with QR code for software download

Warranty

• 1 Year Limited Manufacturer’s Warranty.
