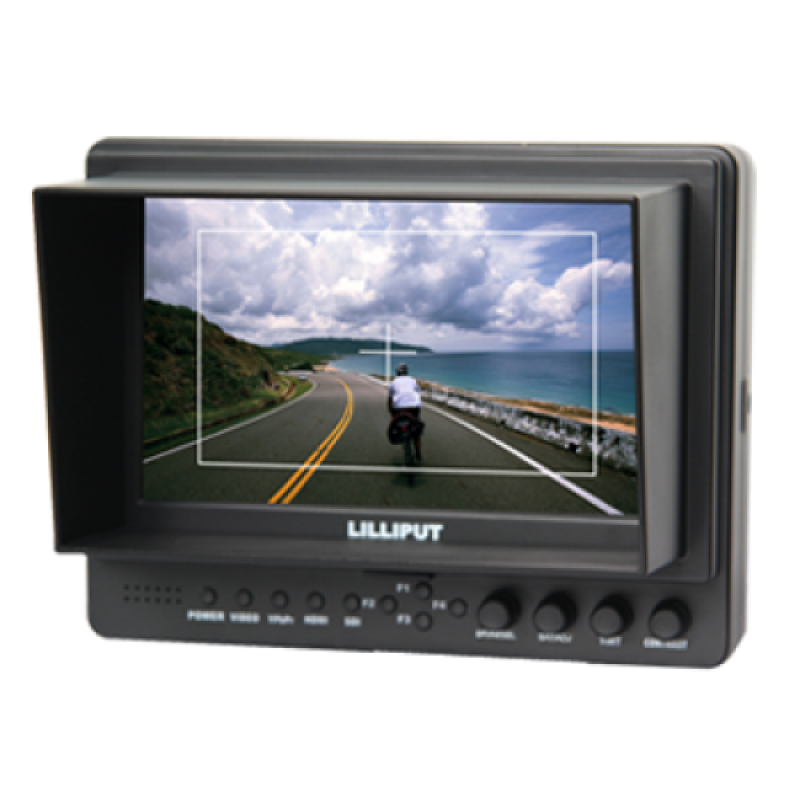

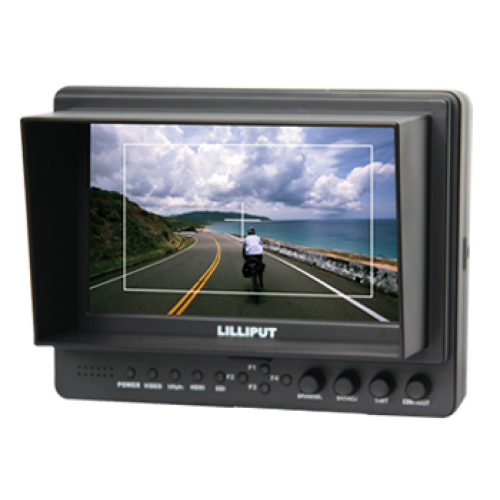

Lilliput 665-O/P - 7" HDMI field monitor

The Lilliput 665-O/P is a 7" widescreen LCD HD field monitor with HDMI, component video inputs (BNC),                                                           Features include peaking functions, focus assistance. A sunhood is included.  DSLR optimised.

NB: THE 665-O/P DOES NOT FEATURE SDI INPUT. IF YOU REQUIRE THIS INPUT PLEASE CHOOSE 665-O/P/S at THIS link.

Click Here For Full Specification Sheet
PLEASE NOTE - BEFORE ORDERING

PLEASE CHECK THAT YOUR CAMERA'S OUTPUT FEED FREQUENCY IS COMPATIBLE WITH THE INPUT FREQUENCIES OF THIS MONITOR BY CLICKING HERE FOR OUR LIST OF MONITORS AND SUPPORTED FREQUENCIES TYPES (FOR BLACKMAGIC CAMERA OWNERS AND OTHER 25FPS CAMERA TYPES)

black magic pocket cinema camera compatible

Black Magic Pocket Cinema Camera Compatible
This monitor is fitted with the 2674 processing chip - which gives a greater range of input frequencies that can be used. For the full range of compatible frequencies please click here

7 inch 16:9 LCD
This is a 7" unit with superior resolution and  higher contrast.
The screen resolution is significantly improved over other 7" HDMI monitors. The 665 has 1024×600 pixels on its LCD panel and a contrast ratio of 700:1,

This is an outstanding monitor for pro-video users

Field monitor for the pro video market
A budget price monitor for the professional user.
Camera equipment can be costly but  Lilliput endeavour to produce quality monitors at a reasonable price unlike some more well known brands. Lilliput's 665 demands serious consideration by today's video professionals.


The 665 features a native resolution of 1024x600 pixels.
This high resolution gives an extremely detailed image potentially avoiding problems in the post-production environment making it an ideal choice for the discerning professional user.


The 665 features a high 700:1 contrast ratio as a result of its advanced LED backlight design. As a result the image will portray an accurate rendition of the composition avoiding issues in post-production.
HDMI output
Most  DSLR equipment features a single HDMI output, therefore a splitter is required if multiple monitors are required to be connected.
Many Lilliput monitors, including the 665  feature an HDMI output which permits duplicate images to be displayed. Daisy-chaining using our monitors allows a easy and relatively inexpensive method of producing a video array although the output feature is compatible with any screen having an HDMI input.

High brightness monitor

Unlike most monitors the 665 has been designed to accept a wide range of input voltage from 6 to 24V. This allows connection to diverse power sources giving greater flexibility when used in outdoor environments.


This allows users to customise features using the programmable buttons on this monitor. This feature has been included following requests from our customers as we are unable to include all possible configurations as standard within the menu system.


Following on from our earlier models which featured improved viewing angles, the LCD panel on the 665 was enhanced still further, allowing the image to be viewed by a large production crew simultaneously.
Internal battery
Extended choice of battery plates
With the 665, two battery plates are bundled, from a selection including a DU21, QM91D, and F970. When purchasing please select your requirement on the website or call for advice.                             V-type and A-N battery plates are also available - please enquire for pricing.

Please note: Returns on this product will not be accepted by Lilliput UK Ltd with respect to incompatibility problems.

HDMI, component and composite
Features HDMI,  component and composite inputs.
Most DSLR cameras now feature HDMI output, but larger production cameras output high definition via component signal.  Additionally, the 665 is also available with an HD-SDI video input ( 665-O/P/S).

Hot shoe mount adapter
A Shoe Mount adapter is supplied with this monitor
By having the adapter included, the customer can avoid facing additional cost of purchasing a separate unit

The 665 features 2  1/4" BS Whitworth thread inserts, allowing  the monitor to be quickly mounted on either a tripod or camera.

Monitor Specification
Screen Size (diagonal)    7 inch
Aspect Ratio    16:9
Native Resolution    1024×600 (native)
Maximum Resolution    1920×1080 (maximum)
Pixel Pitch (mm)    0.15×0.15
Scan Frequency (Hz)    60-72
Response Time (ms)    10
Viewing Angle (degrees)    150º x, 145º y
Brightness Ratio (cd/m2)    250
Contrast Ratio    700:1
Backlight    LED
Video Inputs    HDMI, Component, Composite
Video Outputs    HDMI
Audio Outputs    <1W
Touchscreen Technology    None
Input Power    DC 6-24V (via XLR) DC 12V via DC jack
Operating Temperature
Mounting Options    ¼ inch BSW thread, shoe mount
Contents Of Box
Product    1 x 665/O/P monitor
Connection Cables    1× HDMI to mini-HDMI cable
Power Adaptor    1x DC 12V plug (available in UK, US and EU style)
Mounts and stands    Hot shoe mount
Additional accessories    Sunshade, Battery Plates
