Blackmagic Cloud Dock 4

Blackmagic Cloud Dock 4

  • 1,603.25€

  • Ex Tax: 1,325.00€


Blackmagic Cloud Dock 4 lets you share up to 4 independent 2.5 inch disks over a high speed 10G Ethernet network. Just plug in SATA HDDs and SSDs, or extreme performance U.2 disks for incredibly fast file reading and writing. You can also sync files globally using Dropbox and Google Drive sync and view all storage, connection and sync activity in real time on a display connected to the HDMI monitor port. Blackmagic Cloud Dock 4 has 4 10G Ethernet ports, an Ethernet over USB-C port and an internal power supply in a single rack unit making it highly portable network storage that’s perfect for high end film and television use.

Connections

SSD Interface

4 x removable and hot-swappable 2.5 inch U.2 SSD or SATA.

10G Ethernet Ports

4 x 10G BASE-T

USB-C Port

1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB

HDMI Monitor Outputs

1

Computer Interface

USB-C or Ethernet for shared file access, configuration and software updates.

Blackmagic Cloud Dock 4

File Sharing Protocol

Protocol

SMB

Computer Connections

50 max.

Cloud Synchronization

Compatible Services

Dropbox

Google Drive

Storage

Storage Type

Bring your own drive.

External Storage Format

ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Displays

HDMI Monitor Out Standards

1080p50, 1080p59.94, 1080p60

Monitor Out Displays

Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.

Status Indicator

LED bezel indicator lights around SSD media slots.

Device Control

External Control

USB-C or Ethernet for configuration and software updates.

Software

Software Included

Blackmagic Cloud Setup Utility

Blackmagic Proxy Generator Lite

Internal software upgrade via Blackmagic Cloud Setup using USB-C port

Operating Systems

Mac icon

Mac 12.0 Monterey,
Mac 13.0 Ventura or later.

Windows Icon

Windows 10, 64-bit.
Windows 11.

Power Requirements

Power Supply

Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.

Power Usage

60W without SSDs.

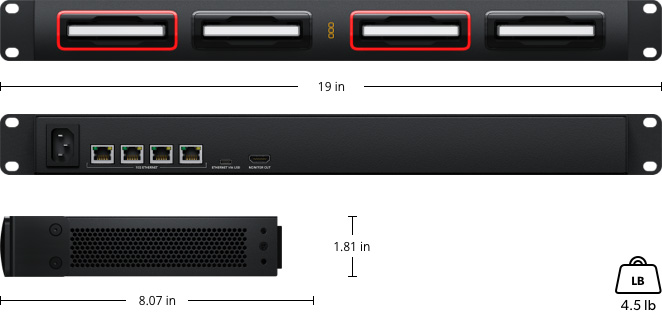

Physical Specifications

Blackmagic Cloud Dock 4

Environmental Specifications

Operating Temperature

0° to 40° C (32°to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic Cloud Dock 4

Welcome wallet with QR code for software download

Warranty

12 Month Limited Manufacturer’s Warranty.
