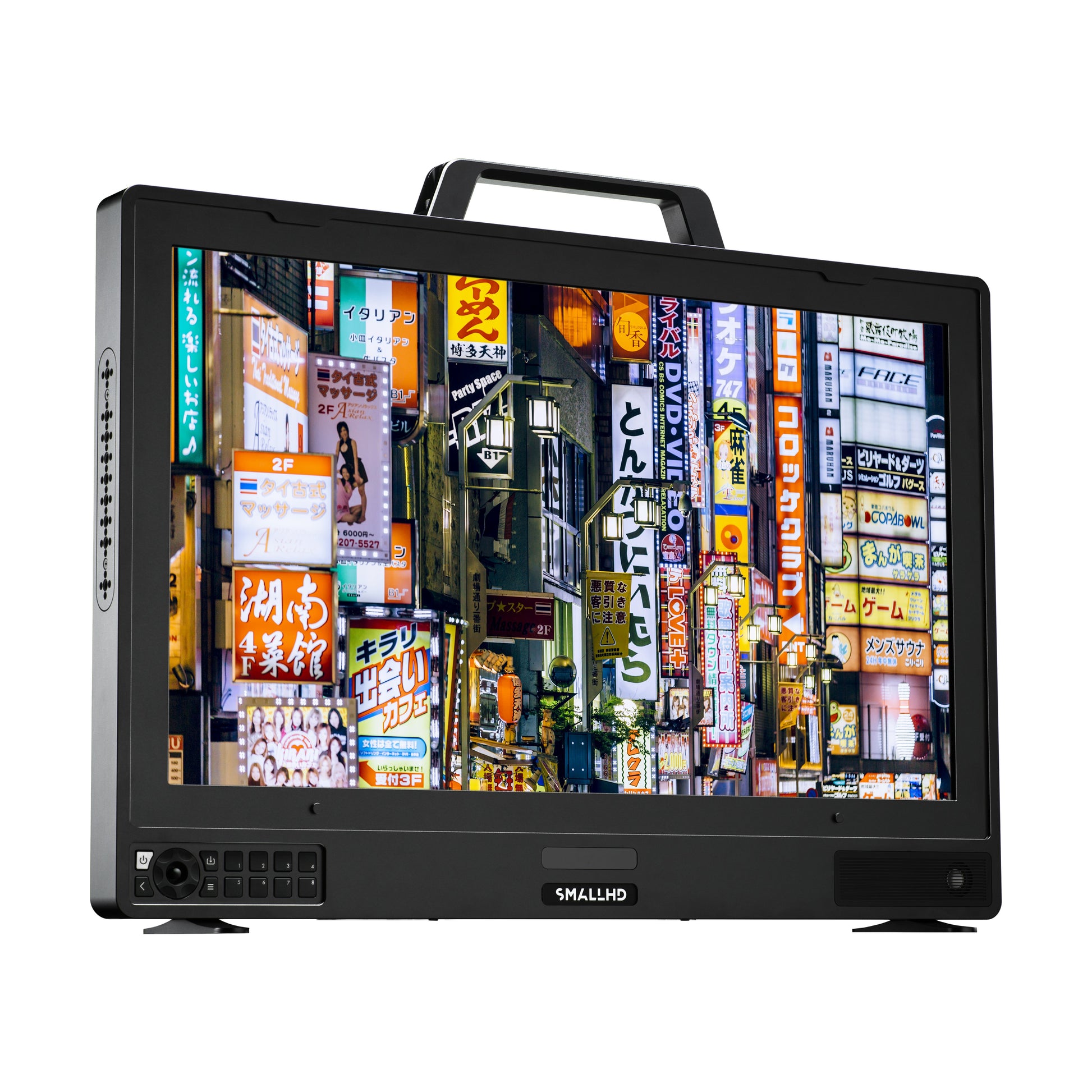

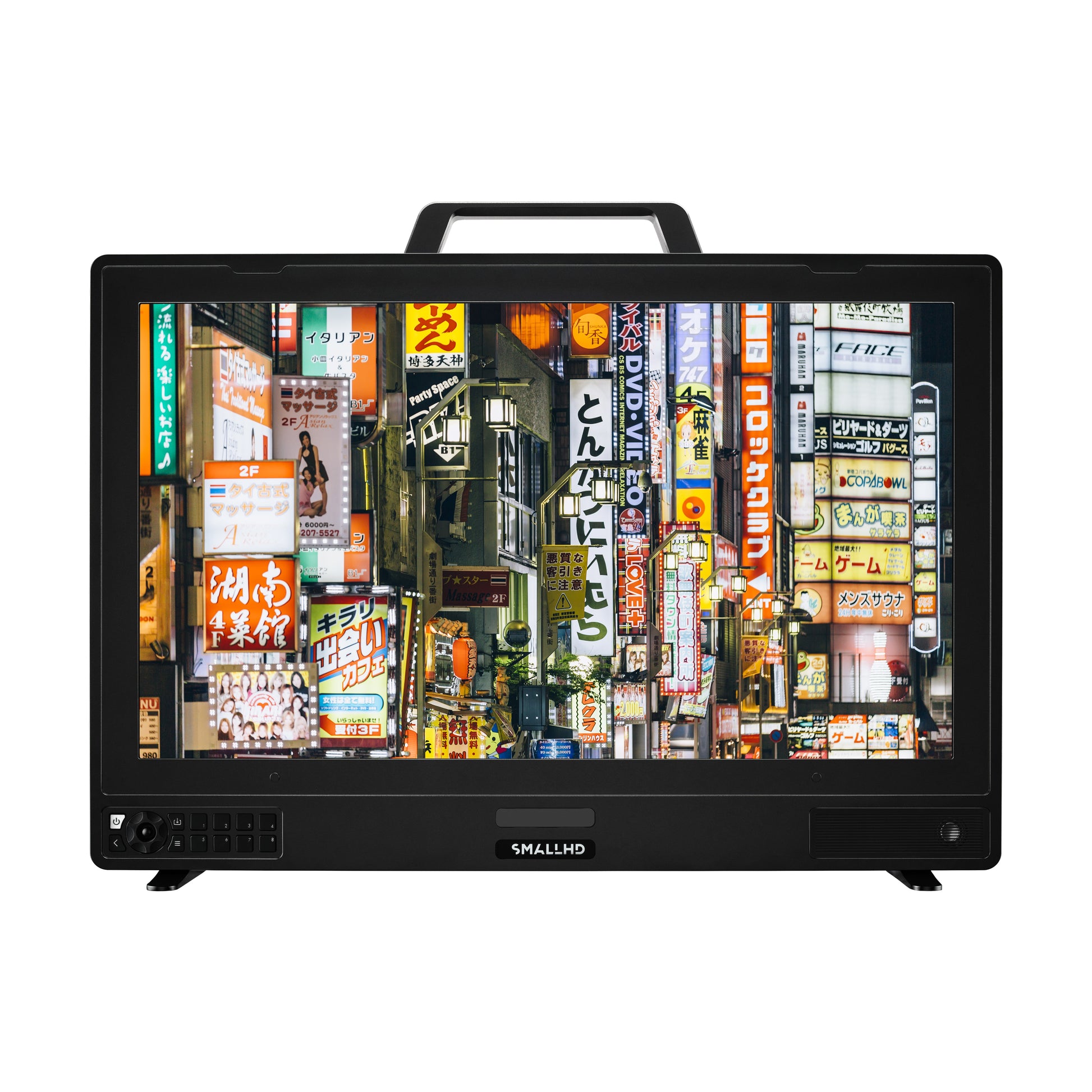

Cine 24 brings 4K, daylight-viewable monitoring everywhere. Lightweight for faster setup and teardown, this monitor is the all-around solution as a director’s monitor or for production and broadcast video villages. Cine 24 is SmallHD’s ultimate production workhorse.
The Cine 24” 4K High-Bright Monitor offers 1350 nits of sustained brightness, enabling clear viewing in bright daylight environments, which eliminates the need for a sun hood or viewing tent. The 24-inch screen, the largest in our Cine series, features a 3840x2160 resolution as well as 10-bit color depth and 100% DCI-P3 color gamut for color-accurate images.

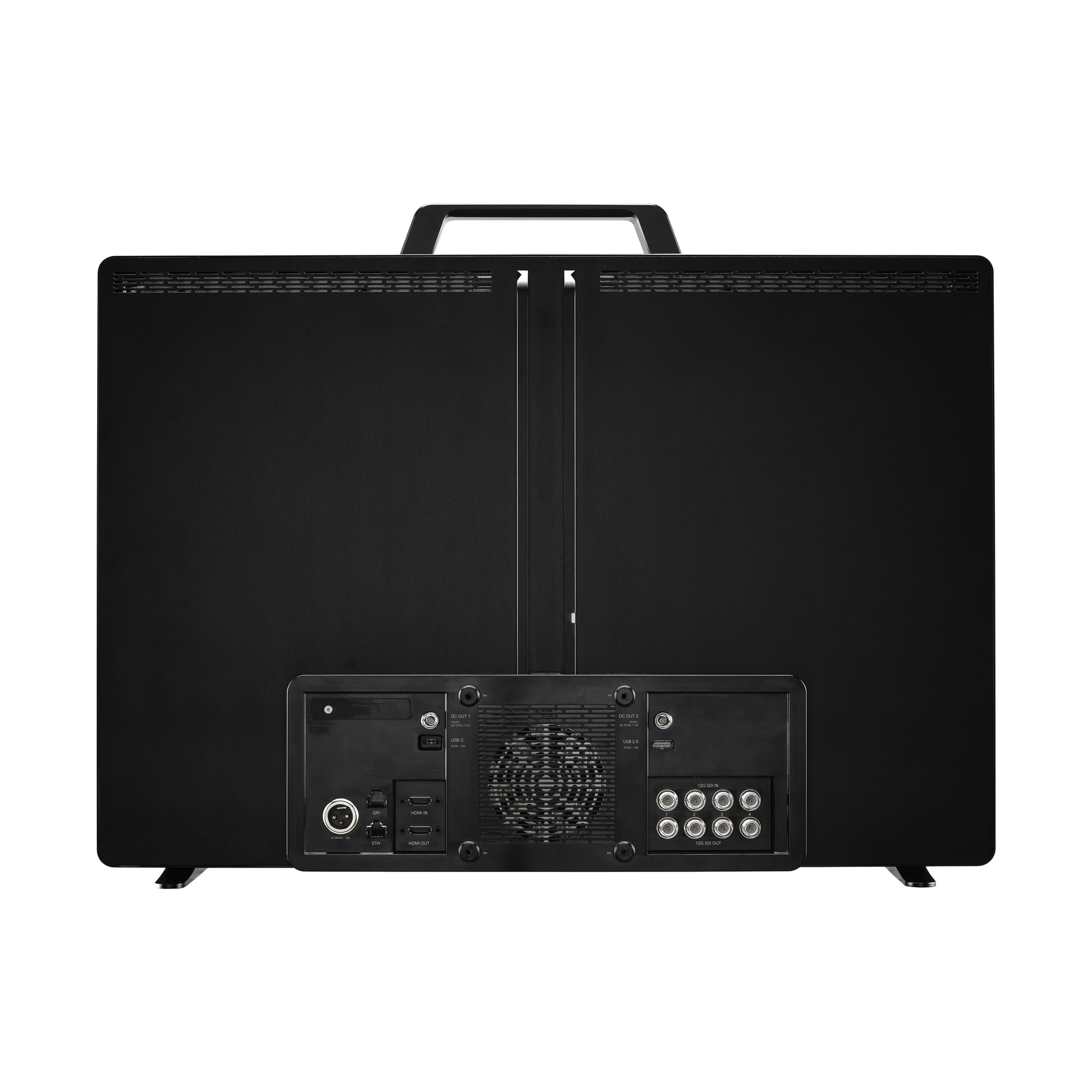

Cine 24 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers a Dovetail Mounting Rail for battery and accessory mounting, interchangeable mounting points, and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mountor V-Mountbattery plate attachments.
Meet Our Smart PageOS Software
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more. Learn more about PageOS.
Technical Specifications
Specifications
Name: Cine 24
Need to Export: True
Environmental
Item Weight (oz): 16.5lbs/7.5kg
Height (in): 15.8 (w/out feet and handle) 17.8 (w/ feet and handle)
Width (in): 23.3 (w/out feet and handle) 23.6 (w/ feet and handle)
Length/Depth (in): 2.4 (w/out feet and handle) 4.7 (w/ feet and handle)
Compliance: FCC, IC, CE, RoHS, SRRC, MIC
Operating Temperature: 32 F - 100 F
Storage Temperature: 0 F - 105 F
Screen Protection: Basic and Hardened

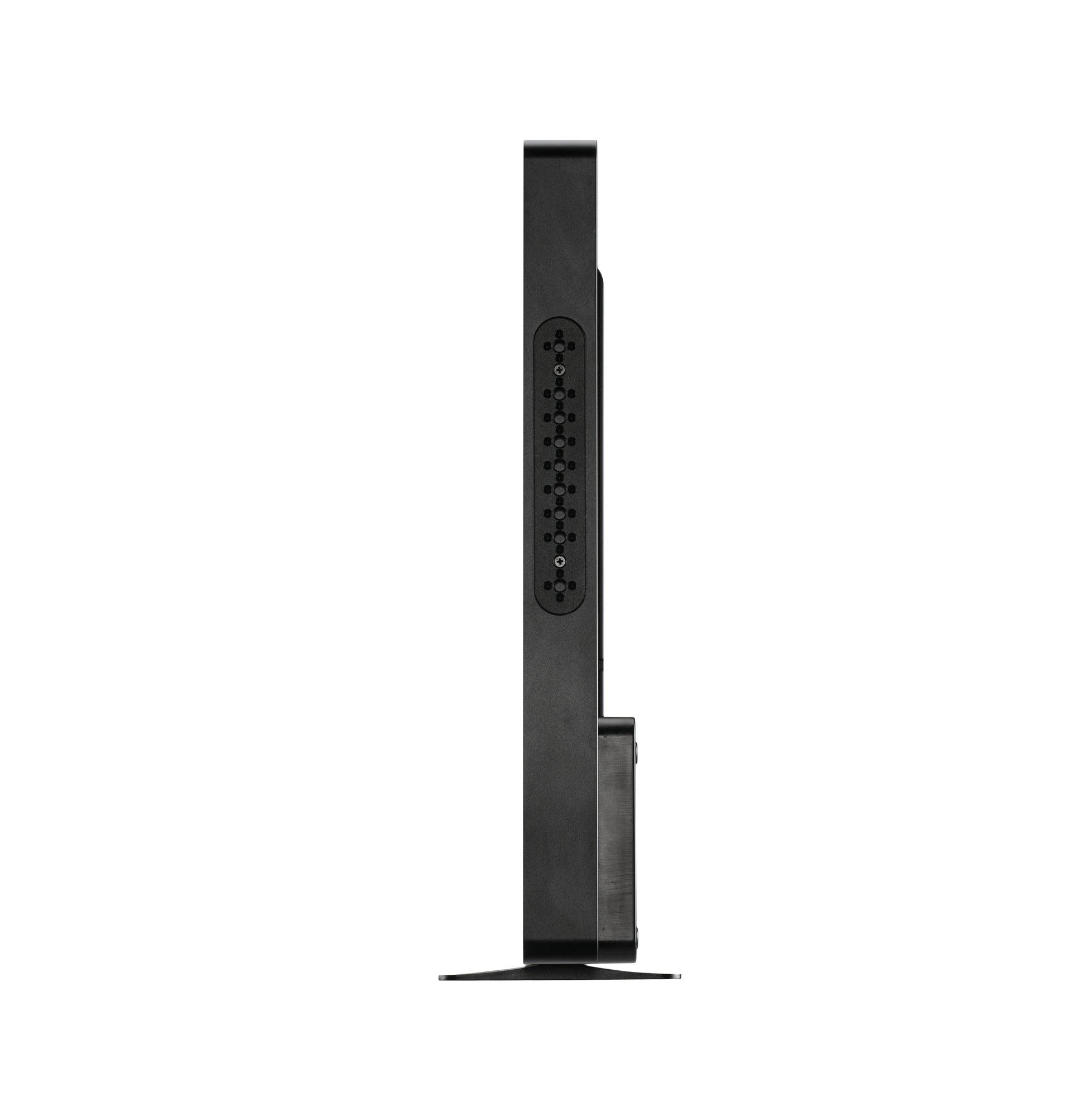

Mount Points: Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
Construction: Anodized aluminum chassis with plastic accents
Display
Panel Type: IPS LCD
Diagonal Size: 24.1
Resolution: 3840x2160
Max Brightness: 1350nits
Contrast: 1000:1
Gamut: Rec709 coverage 100%
Color Depth: 10-bit (8+2)
Viewing Angle: 178 Degrees
Backlight Type: Edgelit
Refresh Rate: Synchronizes with input from 48Hz to 60Hz
