SWIT S-4601 | Heavy Duty HDMI to 3G-SDI converter
SWIT S-4601 | Heavy Duty HDMI to 3G-SDI converter
HDMI® converted to 3G/HD/SD-SDI, and embed HDMI® audio or Analog audio to SDI.
HDMI® to SDI Converter
Official Features
Portable Mini Converter
HDMI® to SDI S-4601 is a mini converter for HDMI® to SDI conversion, widely used on broadcasting the HDMI® video source, supports up to 1080p 50/60 HDMI® converted to 3Gb/s SDI.
Input and Output

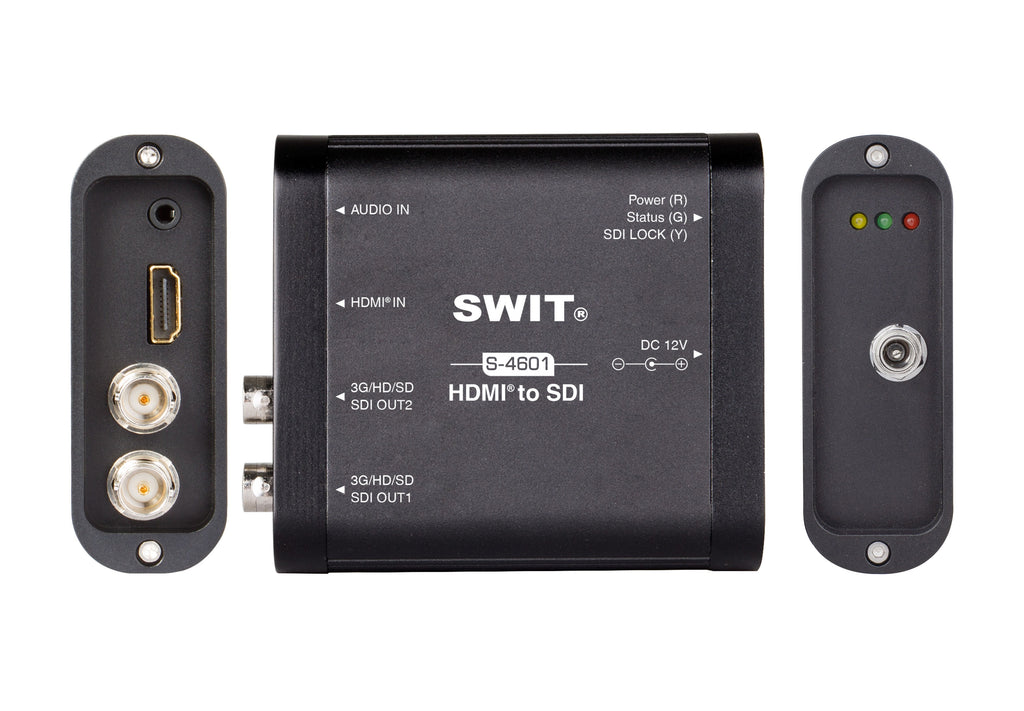

S-4601 offers: 1× HDMI® Type-A input 2× 3G/HD/SD-SDI output (Reclocked) 1× 3.5mm audio input (The HDMI® to SDI supports the same format conversion only.) S-4601 features low SDI jitter and SDI re-clocking so that you can use the longest SDI cable lengths and maintain pristine quality images.
Embed HDMI®/Analog audio into SDI output
The HDMI® audio ch-1 & ch-2 can be embedded into SDI to output. And when there’s analog audio input via 3.5mm socket, the stereo analog audio can be embedded into SDI to output. The audio supports 48kHz sample rate.
Status Indicators

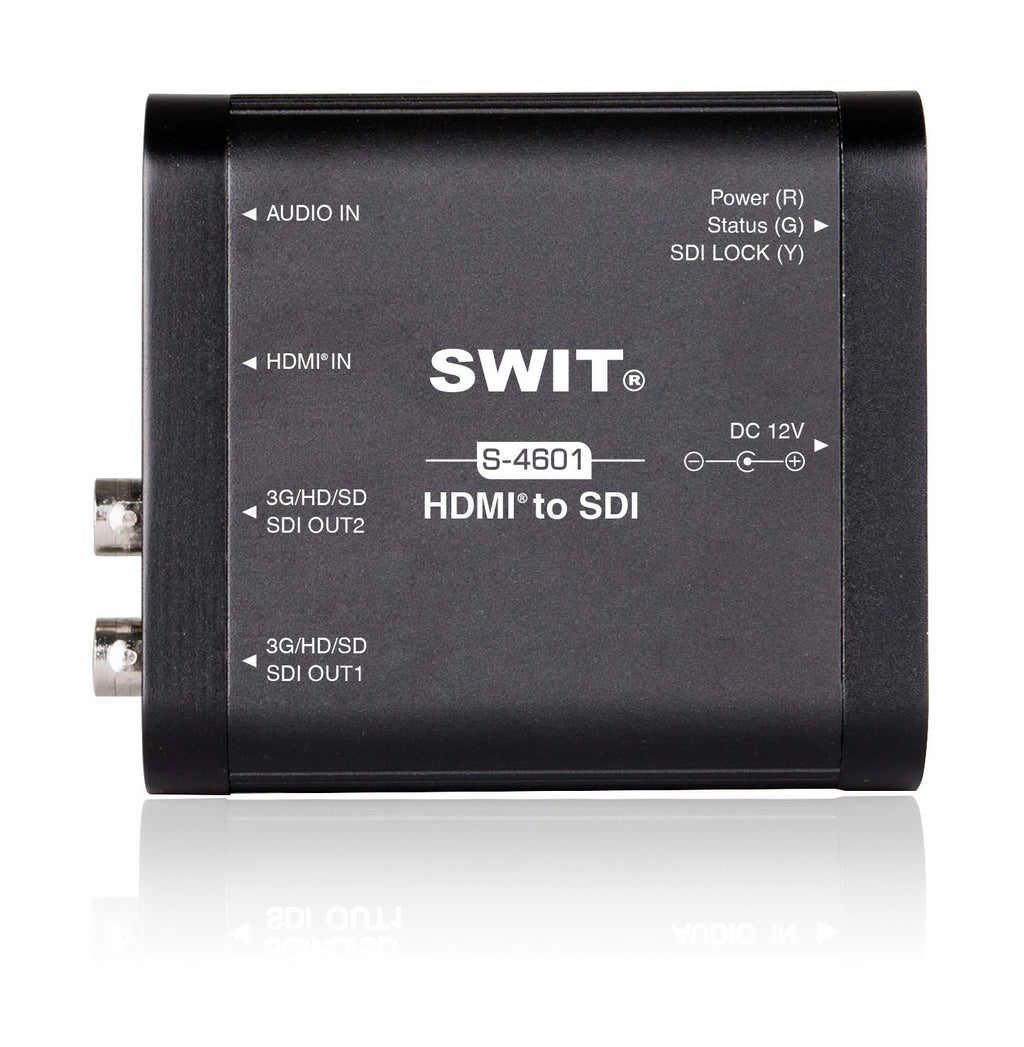

Power / Input / Output S-4601 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing

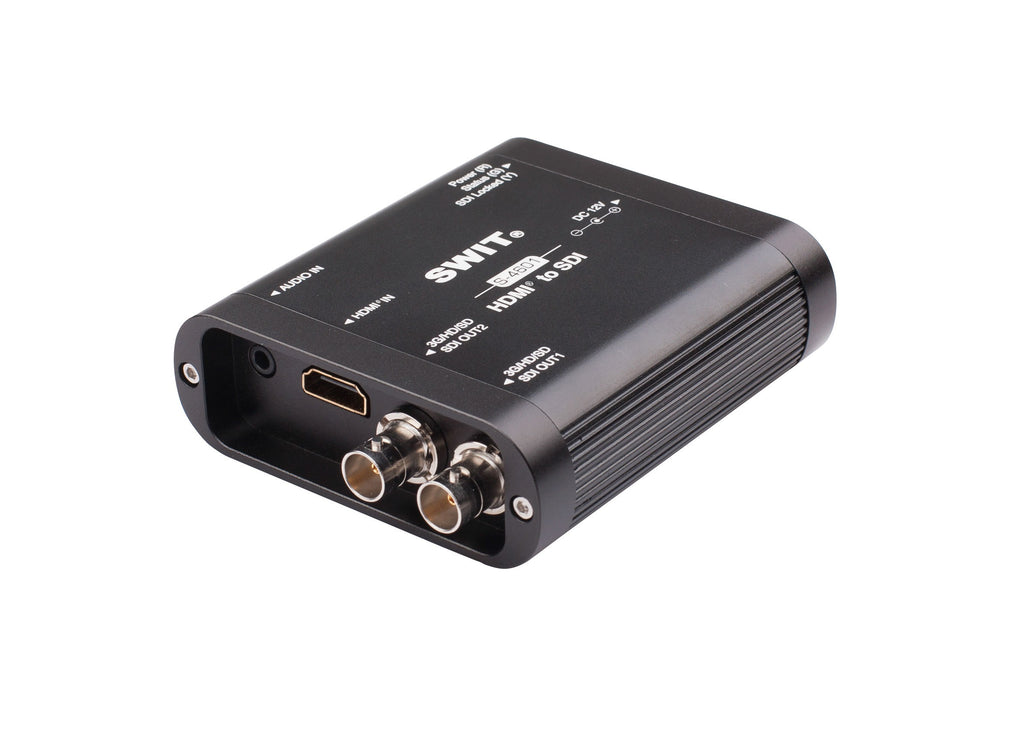

The S-4601 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.
Installation

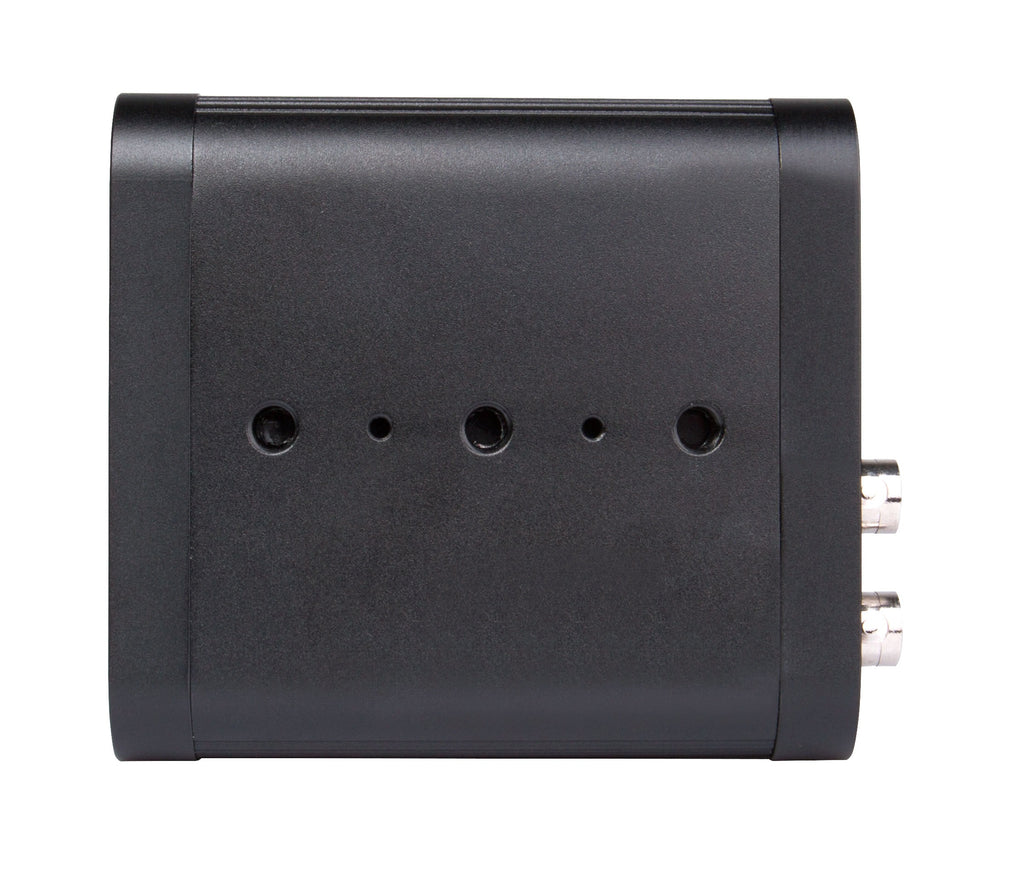

S-4601 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/HDMI® cables.
Official Product Data
- Model SPU: S-4601
- Division: Other
- Big Category: Converter
- Small Category: Video converter
- Weight (kg): 0.5
- Spec 1: HDMI to SDI converter
Official Specifications
Input
| HDMI® ×1 | HDMI® input |
| 3.5mm×1 | Analog audio input |
Output
| BNC ×2 | Converted 3G/HD/SD-SDI output |
Video Format
| SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
| HDMI® | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 480i / 576i | |
| Audio | 48KHz Sync |
General
| Power | ≤3W |
| Working Voltage | DC 6-18V |
| Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
| Dimensions | 98×84×29 mm |
| Net weight | Net 210g; With package 0.5kg |
