SWIT S-4600 | Heavy Duty 3G-SDI to HDMI converter
SWIT S-4600 | Heavy Duty 3G-SDI to HDMI converter
3G/HD/SD-SDI converted to HDMI®, with embedded audio.
SDI to HDMI®Converter
Official Features
Portable Mini Converter
SDI to HDMI® S-4600 is a mini converter for SDI to HDMI® conversion, widely used on HDMI® televisions, LED screens, projectors to display up to 3Gb/s broadcast SDI videos.
Input & Output

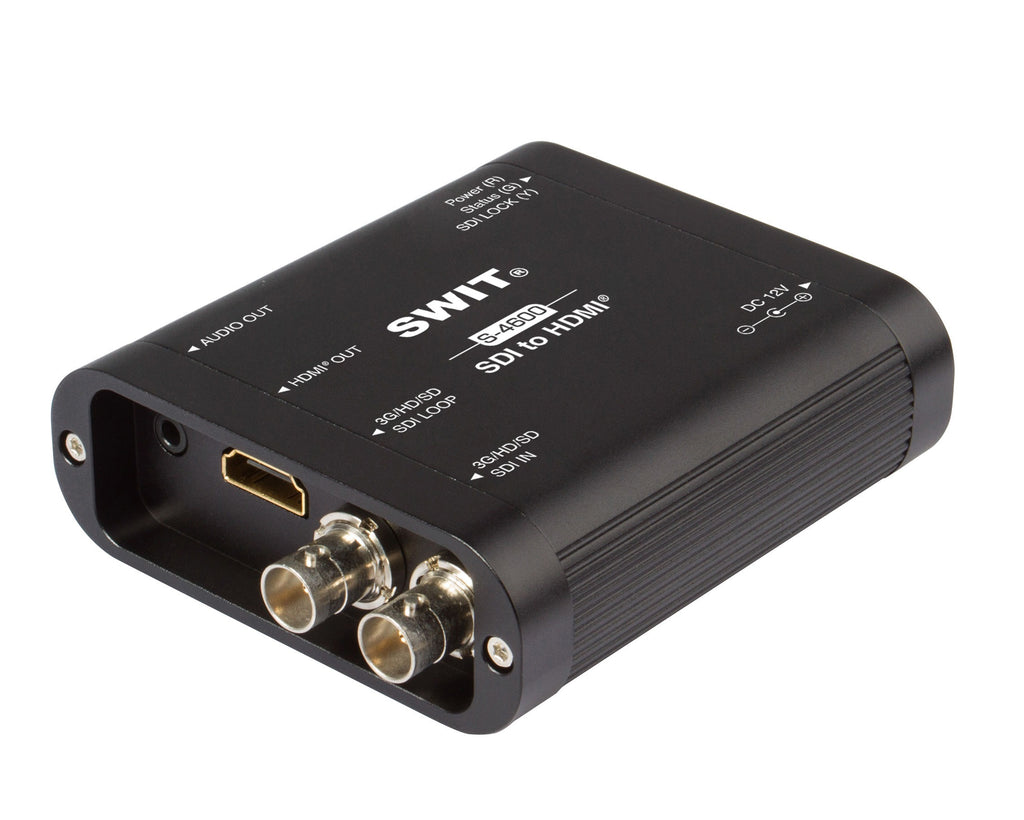

S-4600 offers: 1× 3G/HD/SD-SDI input 1× 3G/HD/SD-SDI loop output (Reclocked) 1× HDMI® Type-A output 1× 3.5mm audio output (The SDI to HDMI® supports the same format conversion only.)
SDI Embedded Audio Converting and Monitoring
The SDI embedded audio ch-1 & ch-2 can be converted into HDMI® and output via 3.5mm headphone socket, and support 48kHz sample rate.
Status Indicators

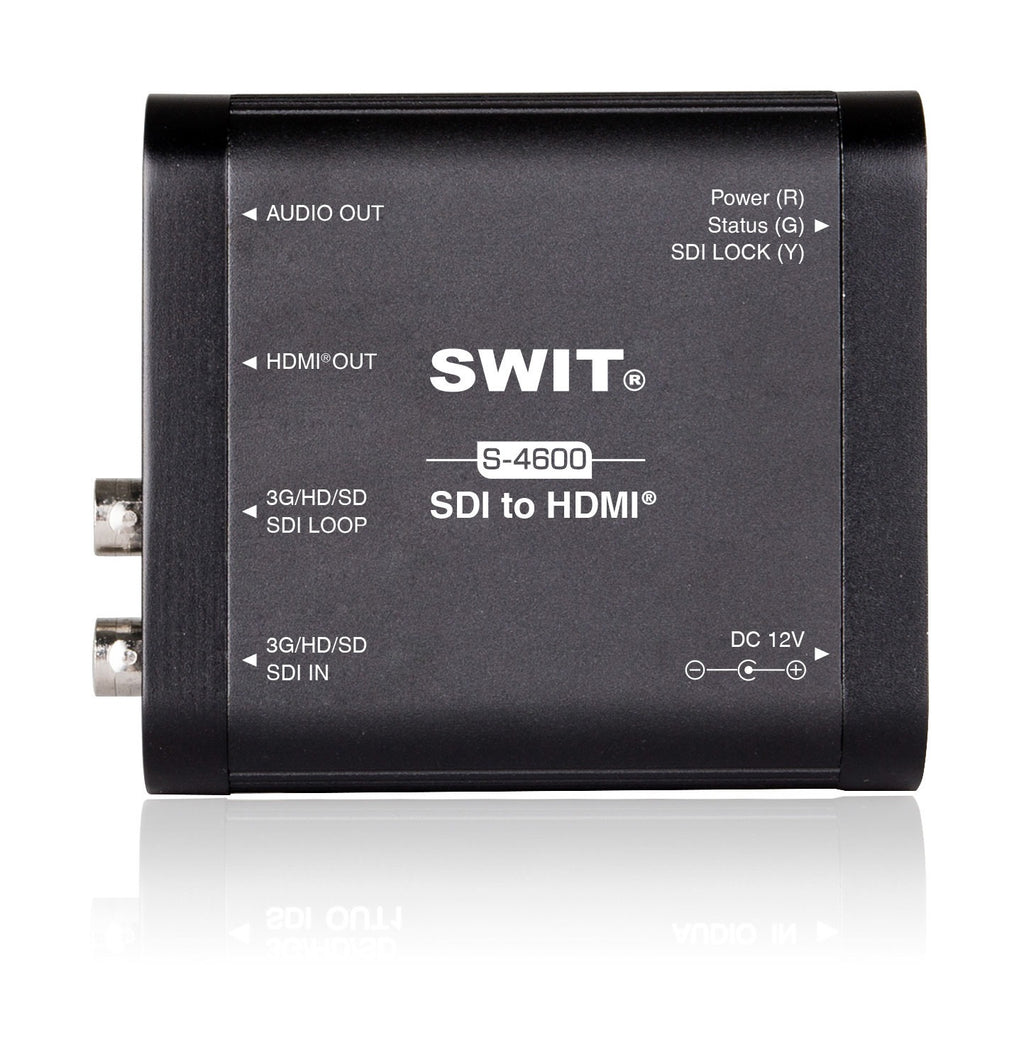

Power / Input / Output S-4600 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4600 mini converter adopts uni- body aluminium alloy housing, strong for field using and protects the BNC connec- tors effectively.
Installation

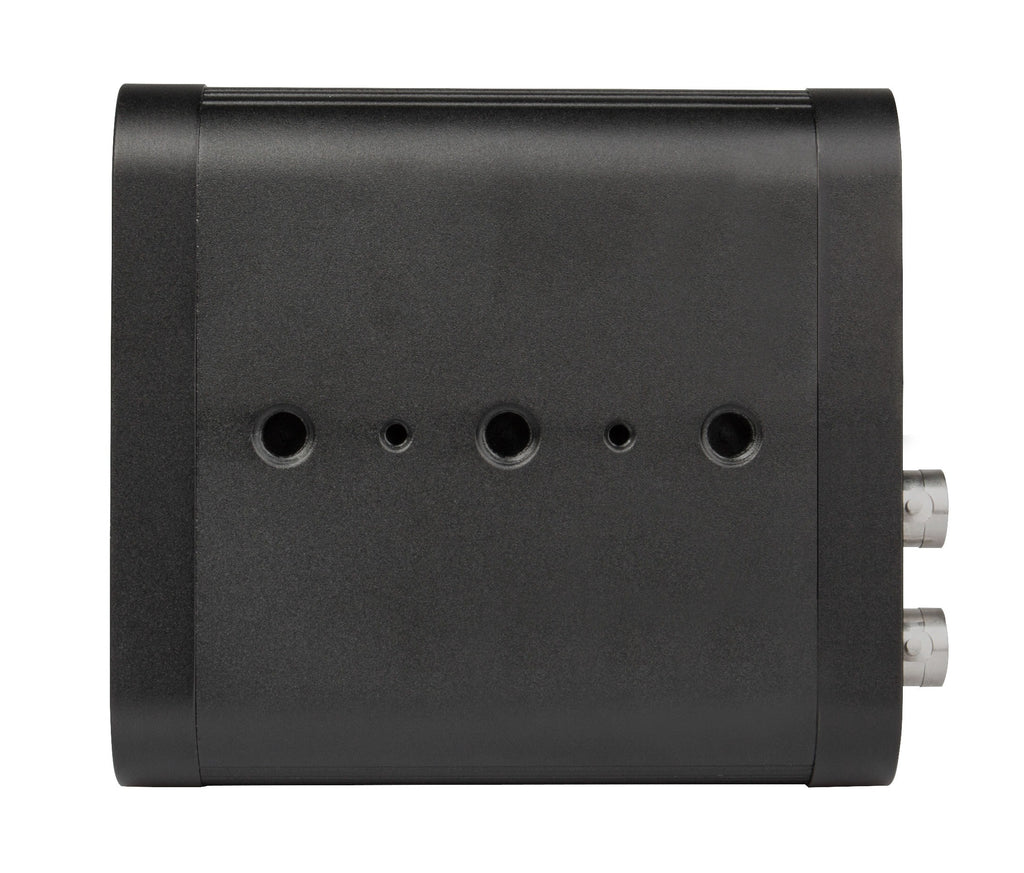

S-4600 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate A-IP00 is supplied in the package, for fixing on wall and binding the BNC/HDMI® cables.
Official Product Data
- Model SPU: S-4600
- Division: Other
- Big Category: Converter
- Small Category: Video converter
- Weight (kg): 0.5
- Spec 1: SDI to HDMI converter
Official Specifications
Input
| BNC ×1 | 3G/HD/SD-SDI input |
Output
| BNC ×1 | 3G/HD/SD-SDI loop output |
| HDMI® ×1 | Converted HDMI® output |
| 3.5mm ×1 | SDI audio output |
Video Format
| SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
| HDMI® | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 480i / 576i | |
| Audio | 48KHz Sync |
General
| Power | ≤3W |
| Working Voltage | DC 6-18V |
| Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
| Dimensions | 98×84×29 mm |
| Net weight | Net 200g; With package 0.5kg |
