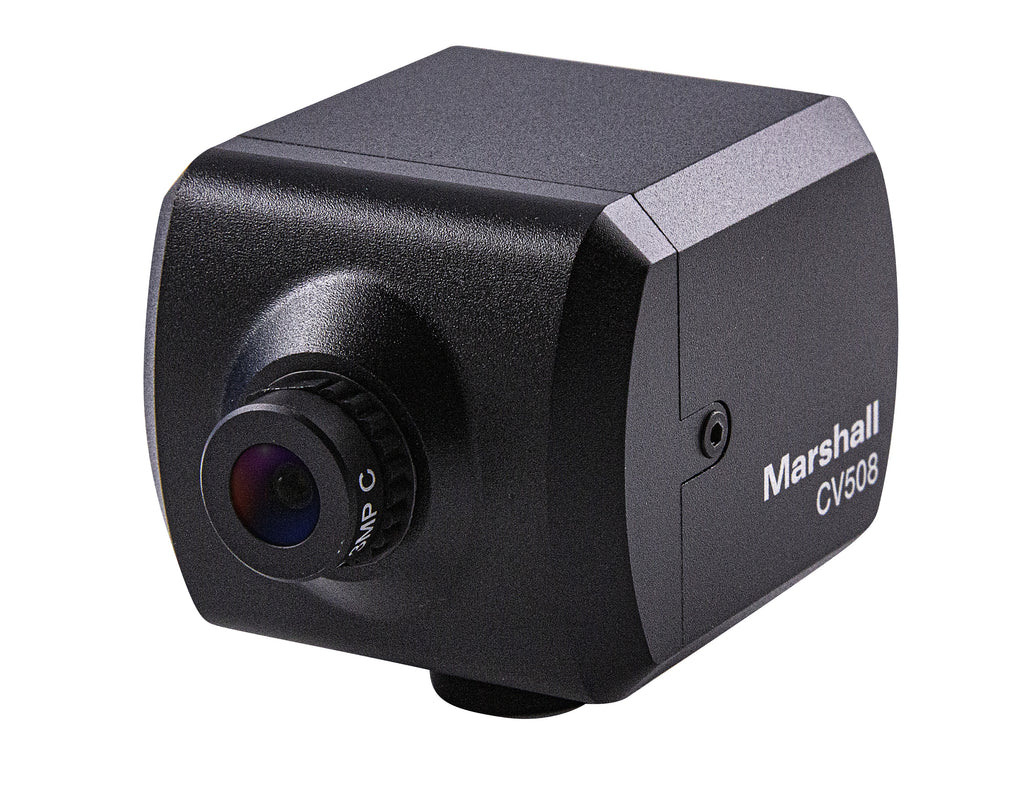

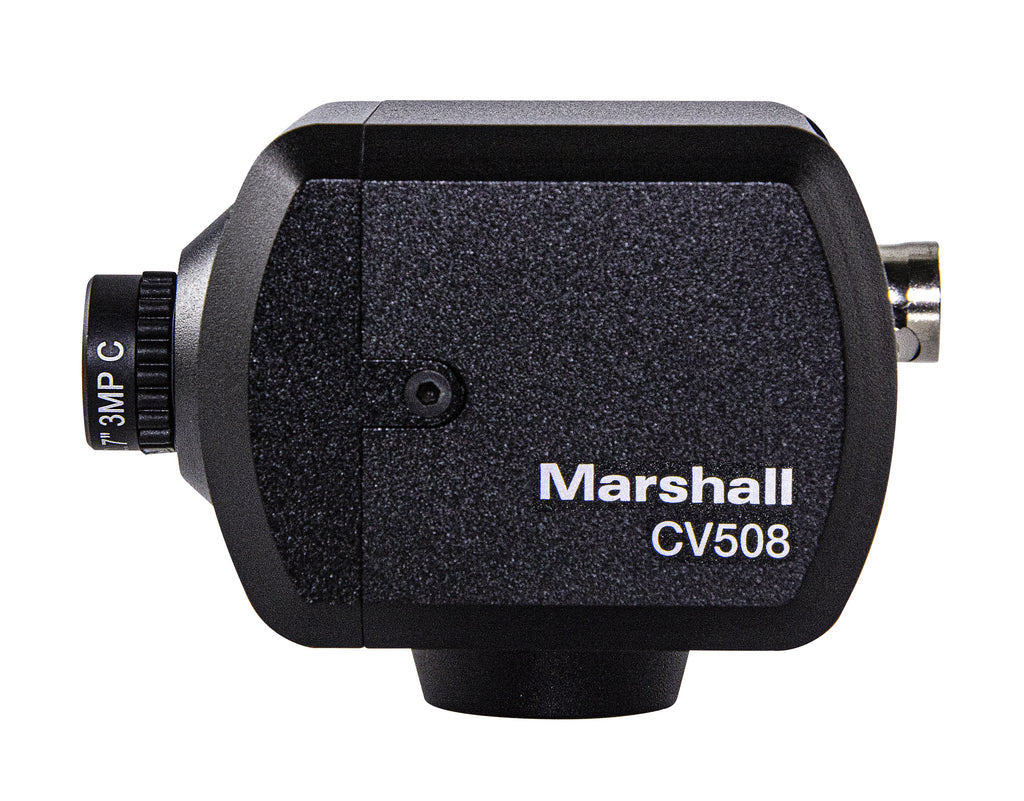

Marshall CV508 - Mini Broadcast Camera with 4.0mm Interchangeable Lens

Marshall Mini Broadcast Camera with 4.0mm Interchangeable Lens – 3G-SDI & HDMI Outputs

Overview

CV508 1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 / 1920x1080i @ 50, 59.94 & 60 / 1280x720p @ 50, 59.94 & 60 Key Features Ultra-compact camera measuring just 40mm x 44mm x 45mm M12 interchangeable lens mount 4.0mm M12 lens included 3G-SDI & HDMI video output connectors 1/2.8″ 2.2 megapixel sensor 1920×1080 up-to 60P I/O breakout cable with control joystick 3.5mm audio input Product Overview The Marshall CV508 Full-HD Miniature Camera with HDMI offers performance, flexibility, and value in a tiny form factor. Built around a next generation 2.2-Megapixel, 1/2.8-inch sensor, the CV508 delivers ultra-crisp, clear, Full-HD video in both interlaced and progressive modes at up to 60/59/50fps. The CV508 utilises full-sized BNC (3G/HDSDI) and HDMI outputs on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV508’s threaded M12 lens mount offers a wide range of prime and varifocal lens options. The CV508 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more. Sensor Sensor Type 1/2.8″ 2.2 Megapixel Pixel Size 2.9μm x 2.9μm Resolution & Frame Rates HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 HD 1920x1080i 50, 59.94 & 60 HD 1280x720p 50, 59.94 & 60 Input & Output Connectors Video Output 1x 3G-SDI & 1x HDMI I/O Breakout Cable 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input Firmware & Service 1x Micro-USB Lens Mount Type M12 Focal Length (included lens) 4.0mm Max. Aperture f/2.0 Focus Manual Image Control Settings White Balance Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain) Control Protocol Control Protocol RS-485 General Power Input 12V DC Dimensions 40mm x 44mm x 45mm In the box 1 x CV508 Camera Body Camera Breakout Cable 1 x 4.0mm M12 Lens 1 x Power Supply Unit (PSU) 1280x720p 24 1920x1080i 24 1920x1080p 24 3.5mm Audio Input 21 3G-SDI 14 HDMI 19 Mini 1 Mini & Compact Cameras 6 RS-485 15

Official Product Data

• Model: CV508
• Category: Mini Cameras
• Price: 499.00 EUR ex VAT
• UPC: 801813230956
• HS Code: 8525.89.0000
