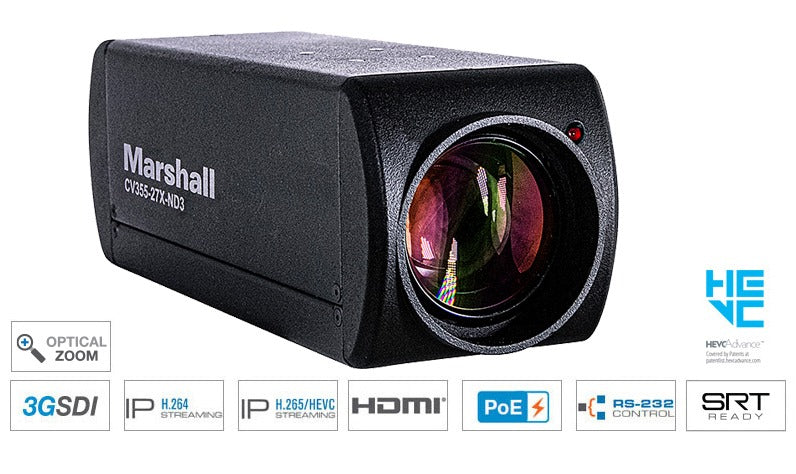

The Marshall CV355-27X-ND3 FHD60 27x with NDI® (NDI HX2, NDI HX3) & 3GSDI captures crisp HD images up to 1920x1080p video up to 60fps from an 8.5 MP sensor with 27x optical zoom and simultaneous 3G/HD-SDI, HDMI, and IP networked H.265/H.264 interface.
Overview
27X Optical Zoom The 27X optical zoom block offers an extensive zoom range from 5.56mm to 150mm starting at 60° all the way out to 3.2° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots. NDI® (NDI HX2, NDI HX3) Workflow keep your productions looking great NDI® preserves visual quality, frame accuracy, and source synchronization. NDI® also opens up a wide range of NDI® Tools available to make your new camera easily discoverable, controllable, adjustable, and consumable into NDI® workflows. Low-light Sensitivity The CV355-27X-ND3 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments. NDI® Network Ideal for use in NDI® networked and A/V installations, the CV355-27X-NDI offers the convenience of NDI® HX2|HX3, 3G/HDSDI and HDMI simultaneous outputs with stereo audio embedding. 8.5 Megapixel (1/2.5") FHD sensor 27x Optical Zoom (5.56~150.29mm) & 12X digital zoom HOV Wide/Tele: 68° / 3.2° Resolutions and frame rates: 1080p 60/59.94/50/30/29.97/25 fps 1080i 60/59.94/50 fps 720p 60/59.94/50/30/29.97/25 fps Supports NDI HX2 and HX3 NDI/IP, 3G/HD-SDI, and HDMI simultaneous outputs Switchable NDI and IP output Ethernet I/O supports video, control, and PoE over a single cable RS232 and 3.5mm audio input with passthrough CV355-27X-ND3 Applications: The CV355-27X-ND3 is suitable for use in networked FHD and workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.
Official Specifications
Sensor: IMX317
Optical Zoom: 27x
Digital Zoom: 12x
Angle of view (H): 60°
Vertical Viewing Angle: 35°
Diagonal Viewing Angle: 68°
Aperture: F1.66~F4.98
Focal Length: f=5.56mm~150.29mm
Focus Distance: Wide：1m ~ ∞ / Tele：1.5m ~ ∞
MTF: Wide: center 1100/corner 900 Tele: center 1100/corner 800
Field of View: Wide Horizontal viewing angle=60° (+/-5%) Tele Horizontal viewing angle=3.2° (+/-5%)
