Lilliput TK1040-NP/C - 10.4" HDMI Open Frame Monitor (non-touch)
- Brand: Lilliput
- Product Code: TK1040-NP/C
- Availability: 2-3 Days
-
255.31€
- Ex Tax: 211.00€
The TK1040-NP/C is a 10.4" non-touch open frame monitor. This means that the monitor can be mounted "front-on" so it sits behind a wall display or window design and can be discreetly dressed in and mounted into an existing design.
***UPGRADED VERSION NOW AVAILABLE - PANEL BRIGHTNESS INCREASED TO 1000 cdm² ***
Click Here For Full Specification Sheet |
 |
The 10.4" Display features 4:3 Aspect Ratio, 800 x 600 resolution, 130° / 110° viewing angles, 400:1 contrast, and 250cdm brightness. |
 |

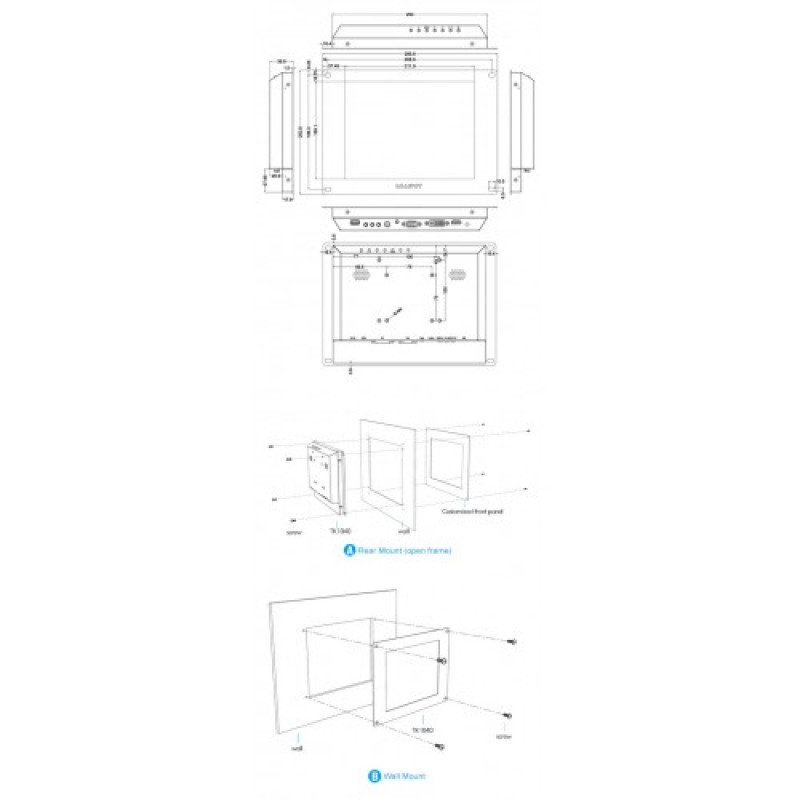

Supplied as an open frame unit, the TK1040 can be mounted by the rear open frame mounts, as well as a choice of the VESA 75 and VESA 100 mounts. You can also mount the monitor on a desktop or inside from a rooftop / ceiling rooftop with the specific VESA 75 mount (sold seperately). |
 |

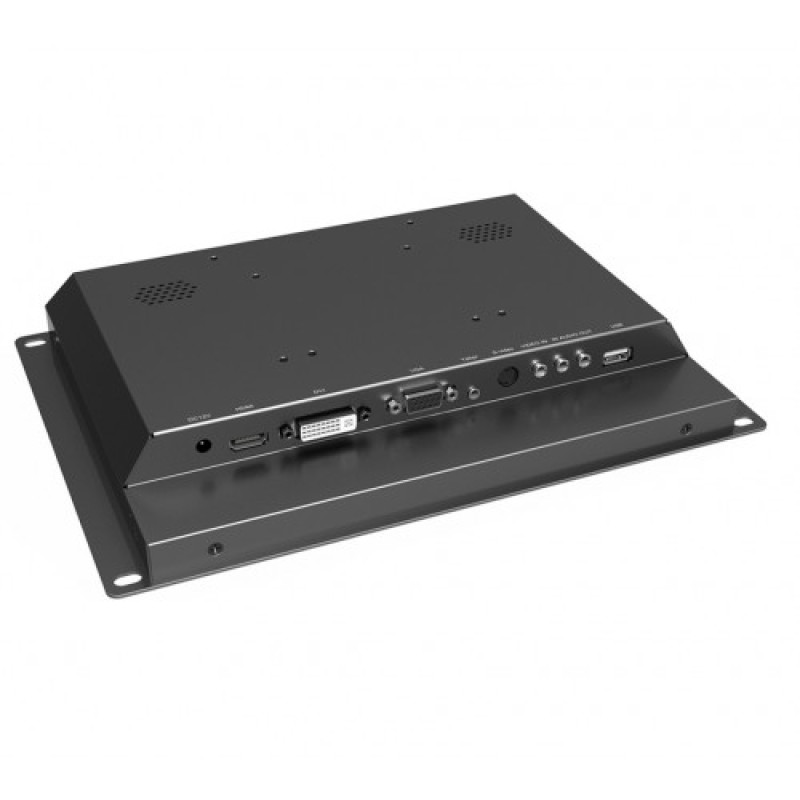

A wide range of video inputs are available for feeding to the TK1040-NP/C monitor - HDMI, DVI, VGA, Composite and S-Video - ensuring a wide compatibility with most video systems. |
 |
The TK1040-NP/C has a metal housing frame - designed to keep the system in good order, protect it from damage, and allow for firm fixing to a wall or display board. |
| Audio | |
| Speaker | 2 |
| Display | |
| Aspect Ratio | 4:3 |
| Brightness | 250 cdm/2 |
| Contrast Ratio | 400 : 1 |
| Display Screen | 10.4" Backlit LED |
| Resolution | 800 x 600 (Native Resolution) |
| Viewing Angle | 130° / 110° |
| Environment | |
| Operating Temperature | -20°c - 60°c |
| Storage Temperature | -20°c - 70°c |
| Input | |
| Input Signal | HDMI / DVI / VGA / Component / Composite / S-Video |
| Power | |
| Audio Output | <=12W |
| Battery | External (Optional) |
| Current | 650 mA |
| Input Voltage | DC 12V |
| Power Consumtion | <=8W |
| Dimensions | |
| Height (mm) | 202.80 |
| Width (mm) | 286.8 |
| Depth (mm) | 38.8 |
